6600bph Blow Molding System , 500ml PET Bottle Blower Machine
-
High Light
500ml PET Bottle Blower Machine
,6600bph Blow Molding System
,6600bph PET Bottle Blower Machine
-
Maximum Bottle Capacity0.7L
-
Maximum Bottle Diameter68mm
-
Maximum Bottle Height Under Neck<240mm
-
Preform Heating Center Pitch48mm
-
High Pressure Air Consumption Of High Pressure Air Compressor4m³/min
-
Number Of Molds6
-
Place of OriginJiangsu, China
-
Brand NameSUNRISE
-
CertificationEcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
-
Model NumberKY-6CR
-
Minimum Order Quantity1
-
PriceNegotiable
-
Packaging DetailsStandard shipping wooden box or stretch film packaging
-
Delivery Time120 days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability6 units per year

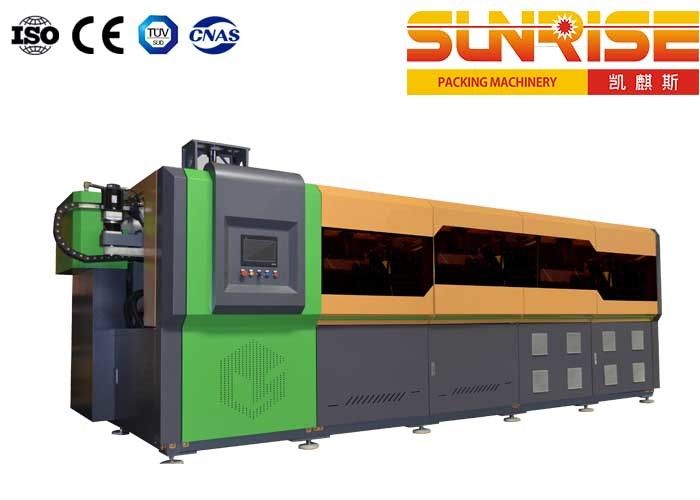

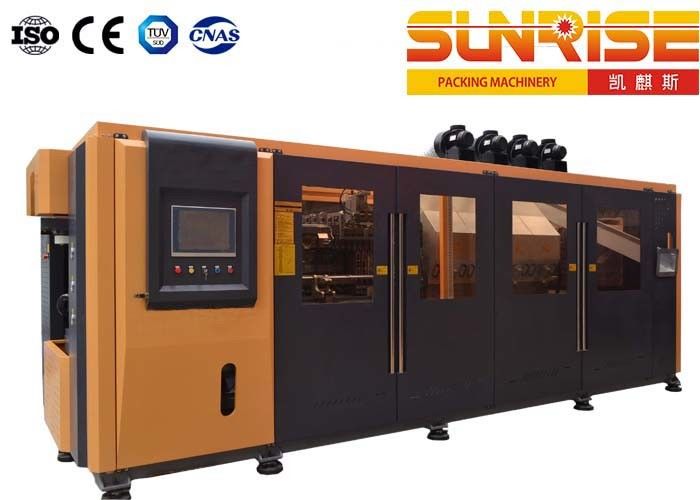

6600bph Blow Molding System , 500ml PET Bottle Blower Machine
6600bph 500ml Automatic PET bottles Blow Moulding Machine
Description:
KYBM-6 automatic bottle blow molding machine is specially designed for low-speed(6600bph), heavy-weight, special shape bottles.
Main specifications:
| Main machine | Maximum Bottle capacity | 700ml |
| Maximum output rate (bph) | 6,600 | |
| Maximum bottle diameter | Φ68mm | |
| Neck diameter | Φ18~38mm | |
| Maximum bottle height under neck | <240mm | |
| Maximum preform height under neck | <115mm | |
| Number of molds | 6 | |
| Heating part | Number of heating modules | 4 |
| Number of heating lamps | 8 | |
| Number of preform bases | 108 | |
| Air source | Low pressure | 1Mpa |
| Low pressure air consumption | 3m³/min | |
| High pressure | 3.5Mpa | |
| High pressure air consumption | 4m³/min | |
| Weight | G.W. | Around 6,000kg |
| Dimension | Main machine (L*W*H) | 4100*2300*2300mm |
| Preform unscrambler(L*W*H) | 2800*2800*3000mm |
