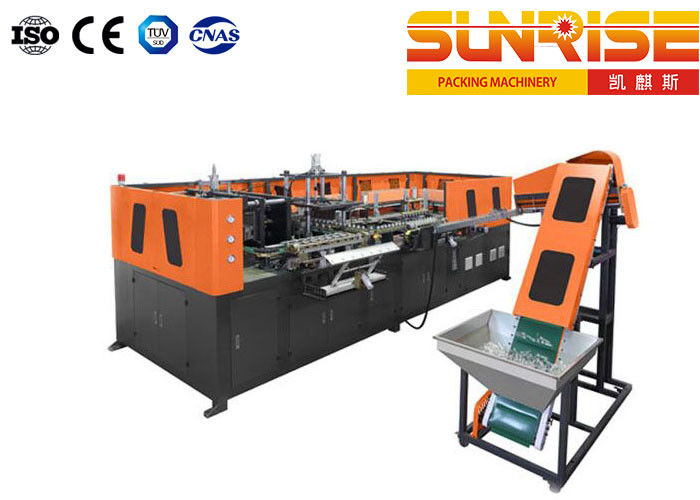

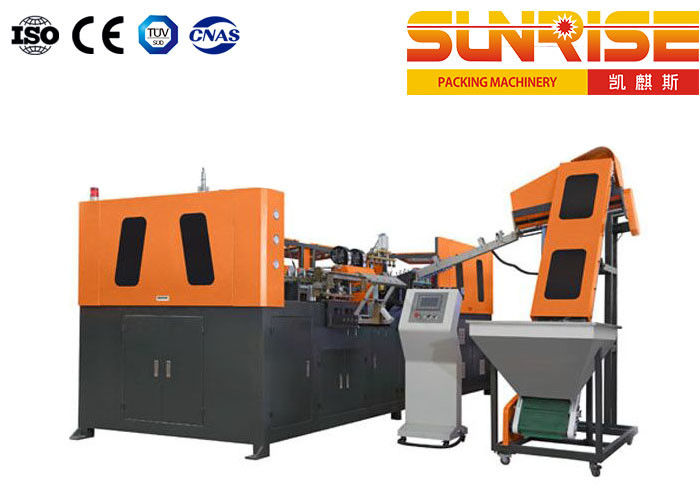

PC Water Bottle Manufacturing Machine , Automatic Blow Moulding Machine 5 Gallon

PC Water Bottle Manufacturing Machine , Automatic Blow Moulding Machine 5 Gallon

  • High Light

    PC Water Bottle Manufacturing Machine


    5 Gallon Automatic Blow Moulding Machine


    5 Gallon Water Bottle Manufacturing Machine

  • Max. Product Volume
  • Dry Cycle
  • Machine Size
  • Machine Weight
  • Installed Capacity
  • NO. Of Heating Zone
  • Clamping Force
  • System Pressure
  • Place of Origin
    Jiangsu, China
  • Brand Name
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

PC Water Bottle Manufacturing Machine , Automatic Blow Moulding Machine 5 Gallon

Strict Quality Control High Output 5 Gallon Pc Water Bottle Making Machine


Main features:


    *PLC+touch screen: making the operation easy. Automatic malfunction alarm with self-diagnosis,

making the malfunction clear at a glance.

    *Accumulator die head: Accumulator die head whose runner is made by high-quality mitrede alloy steel with mirror surface treatment, material, and color quick reload.

    *Unique “liner guide”: Unique “liner guide” to the clamping structure to ensure mold-lock uniform, knit line smoother.

    *Energy-saving hydraulic principles: Hydraulic system designed under energy-saving hydraulic principles, lower energy consumption by 20%-40% compared with the conventional model. At the same time, a significant reduction in oil temperature extends the service life of hydraulic parts.

    *Variety of functions for products: Variety of functions for different products matching the technological requirements: bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, parison control system, etc.


Product details:


Main Parameters
Available material PE,PP,etc.
Max. Product Volume 30 (L)
Dry Cycle 650 (pcs/h)
Machine Size 4.5*2.4*3.5 (L*W*H)(m)
Machine Weight 11.5 (Ton)
Installed capacity 73 KW
Plasticizing System
Screw Diameter 80 (mm)
Screw L/D Ratio 25 L/D
Plasticizing capacity 100 (kg/h)
Screw Heating Zone 4 (Zone)
Screw Drive Power 30 (KW)
Extrusion Die Head
Type Storage Die Head
NO. of Heating Zone 4 (Zone)
Die Heating Power 11.9 (KW)
Max. Die Diameter 300 (mm)
Opening And Clamping System
Clamping Force 180 (KN)
Mold Stroke 400~900 (mm)
Max. Mold Size 600X700 (WxH)(mm)
Hydraulic System
Oil Pump Power 15 (KW)
System pressure 12 (MPa)
