4800BPH Plastic Bottle Blow Moulding Machine 1500ml

4800BPH Plastic Bottle Blow Moulding Machine 1500ml

  • High Light

    4800BPH Plastic Bottle Blow Moulding Machine


    1500ml Plastic Bottle Blow Moulding Machine

  • Maximum Bottle Capacity
  • Maximum Output Rate (bph)
  • Maximum Bottle Diameter
  • Neck Diameter
  • Maximum Bottle Height Under Neck
  • Maximum Preform Height Under Neck
  • High Pressure
  • Number Of Molds
  • Place of Origin
    Jiangsu, China
  • Brand Name
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

4800BPH Plastic Bottle Blow Moulding Machine 1500ml

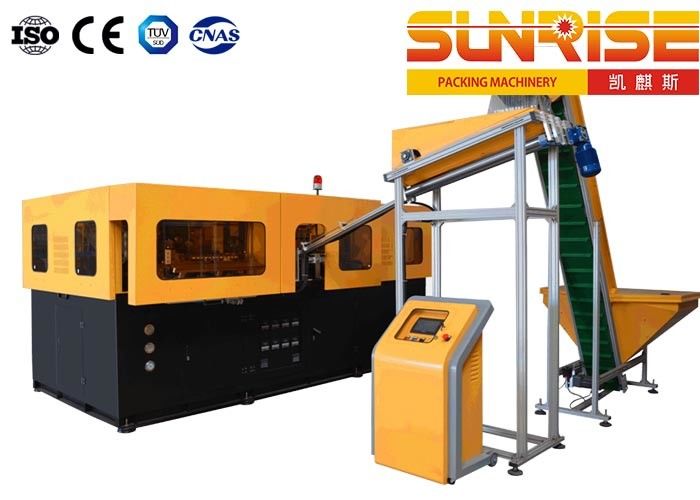

4800BPH 1500ml Automatic Plastic Bottle Blow Moulding Machine




    KY-4CR is a standard automatic bottle blowing machine focuses on blowing 2L PET bottle for edible oil and mineral water.


Main features:


    Accurate preform-divided

· Servo driven equidistance preform-divided, safe, fast, and precise

    Servo mold-Clamping

· Servo driven mold clamp, bottom mold and mold clamping linkage

· High-pressure mold-locked guarantee the bottle blowing speed and quality

    Stable main transmission

· Servo driven stretch rods and main transmission

· Double limits

· Stretch rods can be auto adjusted, flexible and high precise

    Safety mold framework structure

· Adopts drawer type structure, mold change and installation are safer and time-saving with special auxiliary tools

    Intelligent operation system

· Human-machine interface control system, high automation, easy operation and safe

    Standardized spare parts

· High-quality standardized spare parts guarantee the reliable and stability of the machines


Main parameters:


Main machine Maximum Bottle capacity 2L
Maximum output rate (bph) 4,800
Maximum bottle diameter Φ106mm
Neck diameter Φ18~38mm
Maximum bottle height under neck <330mm
Maximum preform height under neck <155mm
Heating part Number of molds 4
Number of heating modules 4
Number of heating lamps 8
Number of preform bases 72
Air source Low pressure 1Mpa
Low pressure air consumption 2m³/min
High pressure 3.5Mpa
High pressure air consumption 6m³/min
Weight G.W. Around 7,000kg
Dimension Main machine (L*W*H) 4500*2300*2600mm
Preform unscrambler(L*W*H) 2800*2800*3200mm
