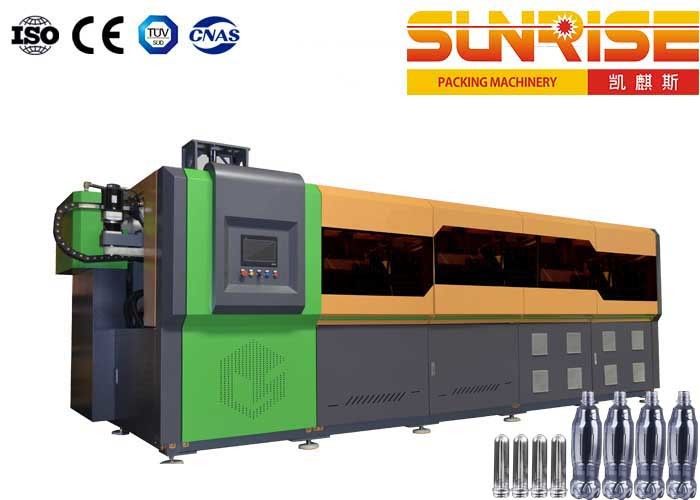

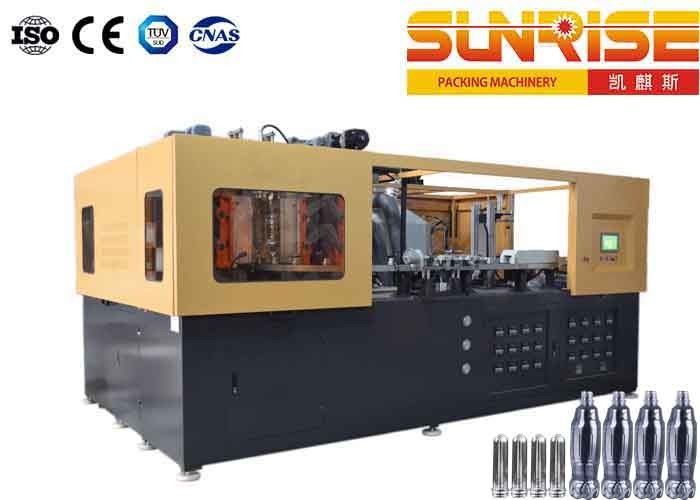

0.35L Blow Molding System , Pet Bottle Making Machine 12000 Per Hour

0.35L Blow Molding System , Pet Bottle Making Machine 12000 Per Hour

  • High Light

    0.35L Blow Molding System

    ,

    12000 Per Hour Pet Bottle Making Machine

    ,

    12000 Per Hour Blow Molding System

  • Maximum Bottle Capacity
    0.35L
  • Output Of HDPE
    (70)100kg/h
  • Station
    Double
  • Clamping Force
    80KN
  • Blowing Pressure Of High Pressure
    0.6Mpa
  • Heating Power
    4.3kw
  • Number Of Heating Zone
    13
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    KY-6CR
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

0.35L Blow Molding System , Pet Bottle Making Machine 12000 Per Hour

0.35L Blow Molding System , PET Bottle Making Machine 12000 Per Hour



Performance And Characteristics Of 3L Blow Moulding Machine:



    This machine is suitable for the small bottles from 30ml up to 500ml bottles with higher capacity production. In this machine, you can have the options on single station, double station, six heads and four heads. The central distance of six heads is 70mm and the one of four heads is 100mm. In this machine, many customers run it to make the milk bottle, juice bottle. And this is very popular in the beverage filed. We can make the most suitable configuration according to your requirement in you new project.



Technical Features:


    1, Electronic control system: Japanese Mitsubishi PLC computer plus man-machine interface (Chinese or English) red paper, touch-screen operation. All process settings, changes, search, monitoring, fault diagnosis and other functions are achieved on the touch screen, no contact with the working principle, components and durable.
    2, Hydraulic system: proportional pressure control, equipped with imported brand-name hydraulic components, stable and reliable.
    3, Plasticizing system: efficient plasticizing mixing screw, plastic to ensure adequate and uniform.
    4, Speed control system: frequency control + alloy steel gear reducer, smooth speed, low noise, durable
    5, Opening and closing mode, mobile system: beam arm, three o’clock, the center of the mold clamping mode, to ensure long-term use. Clamping force balance, no deformation, and the use of translation mode body (ball linear guide), high precision, less resistance, faster.
    6, Blowing needle holder: the overall angle-type blowing needle holder, stable and not shift, to ensure that products cut smooth.
    7, Six die head, double-station twelve cavity production, high output, low production and operation costs.
    8, Online automatic rotation incision (invention patent), bottle smooth, while removing the bottom of the bottle material.
    9, Milk bottles can be directly transported to the milk filling plant.
