<1>360 degree cleaning inside and outside of the bottle,no dead Angle.
<2>All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
<3>The flushing pressure can be adjusted.
<4> 304/316 stainless steel pump.

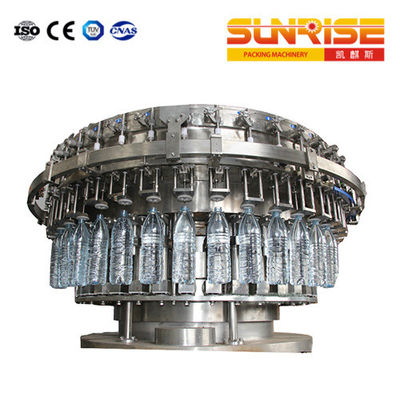

Automatic Mineral Water Bottle Liquid 18000bph 3 In 1 Filling Machine
-
High Light
18000bph water bottle filling machine
,18000bph 3 in 1 filling machine
,150mm 3 in 1 filling machine
-
TypeFilling Machine
-
ApplicationFood, Beverage
-
Packaging MaterialPlastic
-
Driven TypeElectric
-
Dimension(L*W*H)4430*3280*2450mm
-
Warranty2 Years
-
Machinery Capacity18000BPH
-
Filling Accuracy1%(liquid Level)
-
Model40-40-12 Filling Water Machine
-
Air Source Pressure0.5-0.6MPa
-
Bottle Height150-340MM
-
Overall Size4430*3280*2450(L*W*H) Mm
-
Packaging TypeBottles
-
Automatic GradeAutomatic
-
Voltage220V/380V
-
Weight6000 KG
-
Key Selling PointsEasy To Operate
-
After-sales ServiceOnline Support, Video Technical Support, Field Installation
-
Filling MaterialWater
-
Marketing TypeNew Product 2020
-
Core ComponentsMotor, Pressure Vessel, Pump, PLC, Bearing, Gearbox, Engine
-
Production Capacity18000 Bph(500ml) Bottled Water Line
-
Rinsing Water Pres0.15-0.2 MPa
-
Place of OriginSiyang, Jiangsu
-
Brand NameSunrise
-
CertificationCE Certificate
-
Minimum Order Quantity1 pcs
-
PriceAs required
-
Packaging DetailsWooden case safe packaging
-
Delivery Time120 days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability6 sets per year
Automatic Mineral Water Bottle Liquid 18000bph 3 In 1 Filling Machine
|
Model |
KSCGF08B |
KSCGF32A |
KSCGF40A |
KSCGF60A |
|---|---|---|---|---|
| Capacity | 10000BPH | 18000BPH | 20000BPH | 30000BPH |
| Rinser；24 | Rinser；32 | Rinser；40 | Rinser；60 | |
| Modules | Filler；24 | Filler；32 | Filler；40 | Fille；60 |
| Seamer；8 | Seamer；8 | Searner；15 | Seamer；20 | |
| Bottle type | PET； D=50〜97mm； H=150~320mm | |||
| Installed capacity | 5kw | 7kw | 9kw | 11kw |
| Compressed air consumption | 0.6Nm3/min,0.6MPa | 0.8Nm3/min,0.6MPa | 1Nm3/min,0.6MPa | 1.2Nm3/min,0.6MPa |
| Water consumption | 1.5~2m3/h,0.25MPa | 1.5~2m3/h,0.25MPa | 2.5 〜4m3/h,0.25MPa | 3.5~6m3/h,0.25MPa |
| Size | 3000X2300X2500 | 3360X2540X2500 | 3550X3250X2500 | 5800X4500X2500 |
| Weight | 6t | 7.2t | 10t | 15t |
| Washout rate | 100% | |||
| Filling liquid level error | ±3mm | |||
| Bottle damage rate | W0.08% | |||
| Domoge rate of bottle cap | W0.5% | |||
| Sealing pass rate | N99.7% | |||
| Capping torque | 0.6〜2.8N.m Fluctuation range ± 15% | |||
| Liquid loss rate | W0.3% | |||
Partial Products Main Technical Parameter:
Bottle washing part

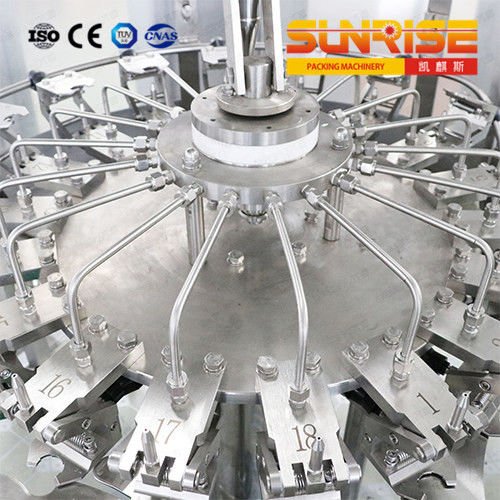

Filling heads :
<1> 304/316 Stainless steel high precision filling nozzle.
<2> Filling volume adjustable in fine rank,same liquid level after fillin
<2> Filling volume adjustable in fine rank,same liquid level after fillin
Capping heads :
<1> with putting capping system and electromagnetic capping heads.
<2> All 304/316 stainless steel construction.
<3> No bottle no capping. automatic stop when lack of bottle.
<2> All 304/316 stainless steel construction.
<3> No bottle no capping. automatic stop when lack of bottle.
FAQ 1. Who are we? We are based in Siyang, Jiangsu, China. Since 2011, we have sold to Northern Europe (10.00%), Oceania (10.00%), Africa (10.00%), the domestic market (10.00%), Eastern Europe (10.00%), East Asia (10.00%) ), North America (10.00%), South America (8.00%), South Asia (6.00%), Central America (5.00%), Western Europe (3.00%), Southern Europe (3.00%), Middle East (3.00) %), Southeast Asia (2.00%) ). There are about 1-4 people in our office. 2. How do we guarantee the quality? It is always a pre-production sample before mass production; Always perform a final inspection before shipment; 3. What can you buy from us? Professional water treatment, beverage filling production, water filling equipment, aseptic filling production line equipment 4. Why buy from us instead of other suppliers? Sunrise is used in beverage machines We are proud to adhere to our company's slogan. Please re-contact us for more information. We are happy to establish a further business relationship with you. 5. What services can we provide? Accepted delivery terms: FOB, CFR; Accepted payment currencies: U.S. dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound, Chinese yuan, Swiss franc; Accepted payment types: T/T, L/C; language Chinese
