15000 BPH 500ml Automatic Drinking Water Filling KSCGF32A

15000 BPH 500ml Automatic Drinking Water Filling KSCGF32A

  • High Light

    24 24 8 water filling machine


    24 24 8 mineral water bottle plant


    12000bph water filling machine

  • Capacity
    15000 Bph For 500ml Bottle
  • Type
    Filling Machine
  • Machinery Capacity
    15000 BPH
  • Showroom Location
    Canada, Turkey, Mexico
  • Application
    Beverage, Drinking Water, Pure Water, Mineral Water
  • Driven Type
  • Filling Material
  • Automatic Grade
  • Dimension(L*W*H)
  • Filling Accuracy
  • Product Name
    Complete Bottle Water Machine Production Line
  • Washing Pressure
  • Material
  • Packaging Type
  • Voltage
    220V/380V 50HZ
  • Key Selling Points
  • Place of Origin
    Jiangsu, China
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
  • Price
    according to customers needs
  • Packaging Details
    paper box
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    Set/Sets Per year 24-24-8 complete bottle water machine production line

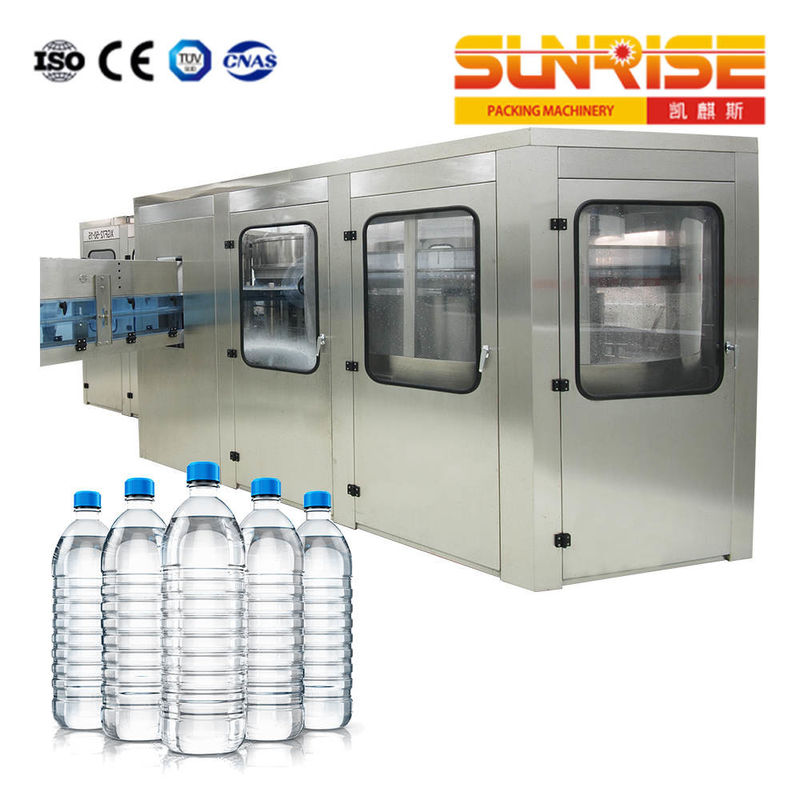

15000 BPH 500ml Automatic Drinking Water Filling KSCGF32A

500ml Automatic Drinking Water Filling

mineral water plant cost :3-in-1 filling monoblock, combined with rinsing, filling and capping. It is used for water bottle rinsing ,water filling and bottle capping . It widely use for bottling filling pure water, drinking water ,mineral water, spring water, portable water ,flavored water ,sparkling water.

15000 BPH 500ml Automatic Drinking Water Filling KSCGF32A 0






Capacity 12000 BPH 15000 BPH 24000 BPH 36000 BPH
  Rinser;24 Rinser;32 Rinser;40 Rinser;60
Modules Filler;24 Filler;32 Filler;40 Fille;60
  Seamer;8 Seamer;8 Searner;15 Seamer;20
Bottle type   PET; D=50〜97mm; H=150~320mm
Installed capacity 5kw 7kw 9kw 11kw
Compressed air consumption 0.6Nm3/min,0.6MPa 0.8Nm3/min,0.6MPa 1Nm3/min,0.6MPa 1.2Nm3/min,0.6MPa
Water consumption 1.5~2m3/h,0.25MPa 1.5~2m3/h,0.25MPa 2.5 〜4m3/h,0.25MPa 3.5~6m3/h,0.25MPa
Size 3000X2300X2500 3360X2540X2500 3550X3250X2500 5800X4500X2500
Weight 6t 7.2t 10t 15t
Washout rate   100%
Filling liquid level error   ±3mm
Bottle damage rate   W0.08%
Domoge rate of bottle cap   W0.5%
Sealing pass rate   N99.7%
Capping torque   0.6〜2.8N.m Fluctuation range ± 15%
Liquid loss rate   W0.3%

Bottle infeed

Bottle infeed by combination of infeed starwheels.
Equipped with bottle jam protection device.



Bottle Rinser
1.The rotary wheel is a fully stainless steel welded structure.
2.The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3.The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
4.All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5.The rinser is driven by driving system positioned inside machine frame via gear transmission.
6.Made of stainless steel of superior quality.

7.Equipped with bottle jam protection device.

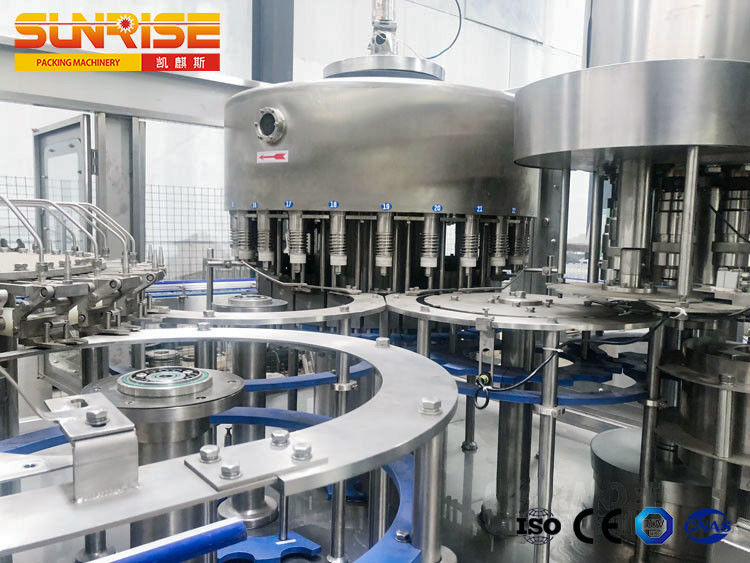

15000 BPH 500ml Automatic Drinking Water Filling KSCGF32A 1

Bottle Filling

1.Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.

3.Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5.Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
6.Level of cylinder is controlled with float-ball.
7.Filler is driven through gears inside the machine frame.
8.Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

Bottle Capping
1.It import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. the power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2.In the screw capping part. it installed photoelectrical control , when it has no cap ,or the cap is bad, the machine will stop automatically.
