15000 Bph 500ml 3-In-1 Mineral Water Bottling Filling Machine

15000 Bph 500ml 3-In-1 Mineral Water Bottling Filling Machine

  • High Light

    8kw drinking water filling machine


    10000 bph drinking water filling machine


    8kw bottled water filling machine

  • Product Name
    Bottled Drinking Water Filling Machin
  • Processing
    Filling Machine,Washing,capping
  • Type
    Filling Machine
  • Automatic Grade
  • Condition
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation
  • Packaging Type
  • Filling Material
    Pure/Mineral Water
  • Place of Origin
    Jiangsu, China
  • Brand Name
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
  • Minimum Order Quantity
  • Price
    By item
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    3 months
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    N units per year

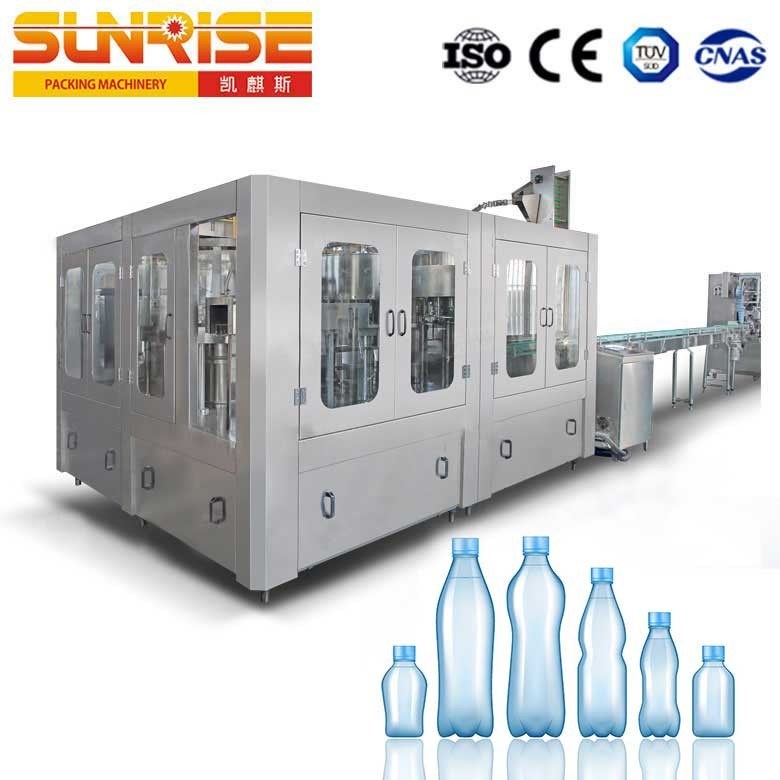

15000 Bph 500ml 3-In-1 Mineral Water Bottling Filling Machine

Description of bottled drinking water filling machine system:
1. Bottled drinking water filling machine is mainly used for beverage operations: this machine combines the functions of washing, filling and capping into one.
2. The whole process is automated, which is suitable for filling juice and mineral water in polyurethane bottles and plastic bottles. The temperature control device can also be used for hot filling.
3. The adjustment of the adaptable bottle shape of each part of the bottled drinking water filling machine is realized by rotating the handle, which is easy and convenient, simple and fast.

4. Filling method: The new micro-pressure filling is adopted to make the filling speed faster and more stable. Therefore, compared with the machine of the same specification, this machine has higher output and greater efficiency.
5. The bottled drinking water filling machine adopts advanced OMRON programmable frequency converter (PLC) to control the automatic operation of the machine, and the bottle feeding chain adopts frequency conversion speed regulation, which cooperates with the host frequency conversion to make the bottle feeding operation more stable and reliable. The photoelectricity detects the running status of the components, with a high degree of automation and easy operation. On this basis, the filling part of this machine is changed to form a low vacuum filling method. The bottled drinking water filling machine is suitable for glass bottle filling of wine, soy sauce, and other materials. Its sealing method can be equipped with metal anti-theft caps and plastic caps. It is an ideal equipment for beverage manufacturers.

The bottled drinking water filling machine system manufactured by Sunrise integrates washing, filling and capping. It is based on foreign advanced technology and developed in accordance with the filling process requirements of pure water and other beverages.

 15000 Bph 500ml 3-In-1 Mineral Water Bottling Filling Machine 0


Parameters of bottled drinking water filling machine:

model Production capacity power size weight
KSCGF24-24-8 6000-7000 bph 6 Kw 3200x1900x2300mm 5000 Kg
KSCGF32-32-8 8000-10000 bph 8 Kw 4300x2000x2300mm 6000 Kg
KSCGF40-40-10 10000-12000 bph 12 Kw 4500x3500x2300mm 9000 Kg
KSCGF50-50-12 12000-15000 bph 15 Kw 5000x4200x2300mm 12000 Kg
KSCGF60-60-15 15000-20000 bph 15 Kw 6000x5000x2300m 15000 Kg



Configurations of water filling machine:

Name Supplier
PLC SIemens
Touch screen weinvew
Frequency converter Danfoss
Air switch,circuit breaker contactor Schneider
Photoeleceric switch SICK
Proximity switch SICK
Intermediate relay Schneider
Temperature control,pressure meter Omron
Main motoe Zhejiang Tongli
Main bearing harbin
Lubrication bearing Harbin
Seal component Han sheng
Pneuamatic componenr Airtac
Bottle washing pump Nan fang Pump
