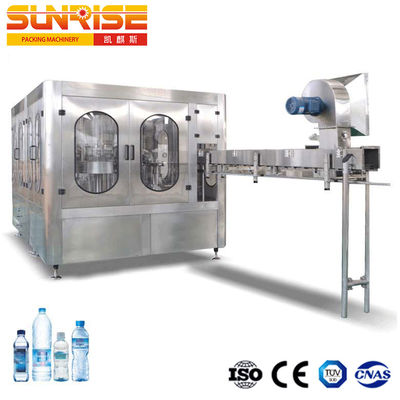

PET Bottles Filling 20000BPH Automatic Drinking Water Filling Machine

PET Bottles Filling 20000BPH Automatic Drinking Water Filling Machine

  • High Light

    8000bph drinking water bottle filling machine

    ,

    8000bph drinking water filling machine

    ,

    20000bph drinking water filling machine

  • Name
    8000-20000BPH Automatic Drinking Water Filling Machine
  • Application
    Still Water, Pure Water, RO Water, Mineral Water, Sparkling Water,
  • Capacity
    7000BPH – 20000BPH (500ml)
  • PET Bottles Filling System
    Gravity Filling Production
  • Automatic Grade
    Automatic
  • Condition
    New
  • Type
    Filling Machine
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation
  • Packaging Type
    Bottles
  • Warranty
    1 Year
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    KSCGF
  • Minimum Order Quantity
    1
  • Price
    discount
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

PET Bottles Filling 20000BPH Automatic Drinking Water Filling Machine



Application: still water, pure water, RO water, mineral water, sparkling water, alcoholic drinks, wine, etc.

Suitable for: PET bottles

Filling system: gravity filling

Production capacity: 8,000BPH–36,000BPH (500ml)

PET Bottles Filling 20000BPH Automatic Drinking Water Filling Machine 0



Advantages of PET bottle automatic drinking water filling machine:
1. The automatic drinking water filling machine is mainly used for beverage operations: this machine combines the functions of washing, filling and capping into one.
2. The whole process is automated, which is suitable for filling juice and mineral water in polyurethane bottles and plastic bottles. The temperature control device can also be used for hot filling.
3. The adjustment of the adaptable bottle shape of each part of the automatic drinking water filling machine is realized by turning the handle, which is easy and convenient, simple and fast.
4. The filling method of the automatic drinking water filling machine: adopts a new type of micro-pressure filling, which makes the filling speed faster and more stable, so compared with the machine of the same specification, this machine has higher output and greater efficiency.
5. The advanced OMRON programmable frequency converter (PLC) is used to control the automatic operation of the machine, and the bottle feeding chain adopts frequency conversion speed regulation, which cooperates with the host frequency conversion to make the bottle feeding operation more stable and reliable. The photoelectricity detects the running status of the components, with a high degree of automation and easy operation. On this basis, the filling part of this machine is changed to form a low vacuum filling method. It is suitable for filling wine, soy sauce, and other materials in glass bottles. The sealing method can be equipped with metal anti-theft caps and plastic caps. It is an ideal equipment for beverage manufacturers

PET Bottles Filling 20000BPH Automatic Drinking Water Filling Machine 1



Parameter table of main models of automatic water filling machine machinery:

Model Hourly filling output machinery power machinery weight
KSCGX22-32-20 8000 to 10000 6 Kw 5000 Kg
KSCGX22-42-20 12000 to 15000 8 Kw 7000 Kg
KSCGX22-52-20 15000 to 18000 12 Kw 10000 Kg
KSCGX22-62-20 18000 to 25000 15 Kw 12000 Kg
KSCGX 22-72-20 25000 to 36000 18 Kw 15000 Kg





Configurations of water filling machine:

Name Supplier
PLC SIemens
Touch screen weinvew
Frequency converter Danfoss
Air switch,circuit breaker contactor Schneider
Photoeleceric switch SICK
Proximity switch SICK
Intermediate relay Schneider
Temperature control,pressure meter Omron
Main motoe Zhejiang Tongli
Main bearing harbin
Lubrication bearing Harbin
Seal component Han sheng
Pneuamatic componenr Airtac
Bottle washing pump Nan fang Pump



Main features of automatic drinking water filling machine:

(1) The machine has compact structure, complete control system, convenient operation and high degree of automation;
(2) To change the bottle type, only need to replace the screw cap part of the star wheel to realize the arc guide plate;
(3) The parts in contact with the materials are made of high-quality stainless steel, no process dead angle, easy to clean;
Bottled water filling machine
(4) The high-speed water filling valve is adopted, the liquid level is accurate and there is no liquid loss, and the filling process requirements are guaranteed;
(5) The capping head adopts a magnetic constant torque device to ensure the capping quality without damaging the cap;
(6) Adopt an efficient coverage management system with complete automatic control and protection devices;
(7) There is a complete overload protection device, which can effectively protect the safety of equipment and operators;
Automatic water filling machine
(8) The control system has functions such as production speed control, leak detection, automatic shutdown of jammed bottles, output counting, etc.;
(9) The main electrical components and pneumatic components are all world-famous products;
(10) The operation of the PET bottle drinking water filling machine adopts advanced touch screen control, which can realize man-machine dialogue operation.
