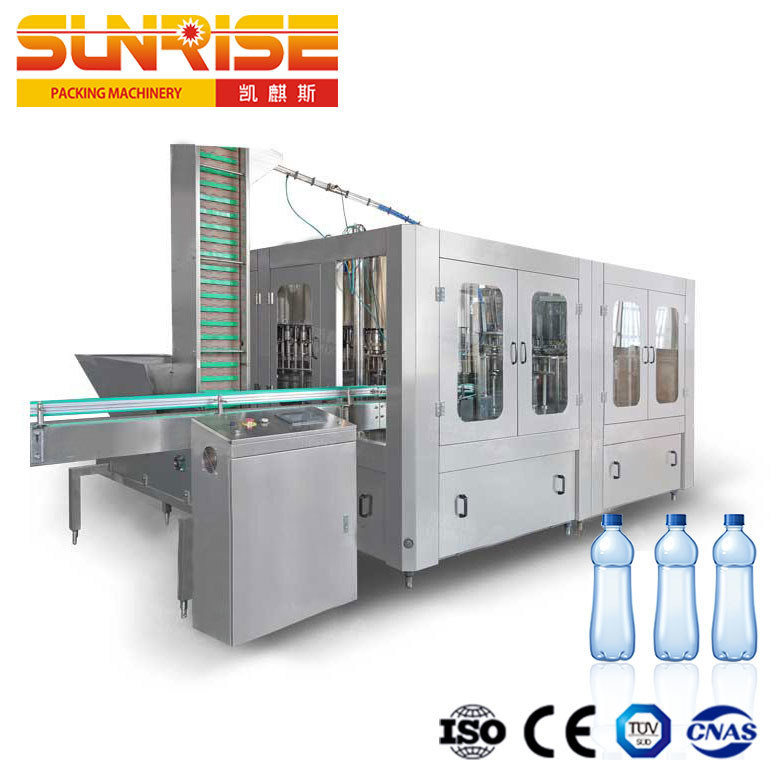

3-In-1 Automatic Drinking Water Filling Machine High-Speed Filling Valve

3-In-1 Automatic Drinking Water Filling Machine High-Speed Filling Valve

  • High Light

    100ml drinking water filling machine

    ,

    500ml drinking water filling machine

    ,

    100ml drinking water bottle filling machine

  • Product Name
    3 In 1 Drinking Water Filling Machine
  • Filling Material
    Drinking Water,Mineral Water,pure Water
  • Automatic Grade
    Automatic
  • Filling Range
    330ml - 500ml
  • Processing
    Filling Machine,Washing,capping
  • Driven Type
    Electric
  • Condition
    New
  • Fill Accuracy
    + 1% On Single Dose
  • Type
    Filling Machine
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts
  • Packaging Material
    Plastic
  • Packaging Type
    Bottles
  • Warranty
    1 Year
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    KSCGF
  • Minimum Order Quantity
    1
  • Price
    Minimum Price
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    N units per year

3-In-1 Automatic Drinking Water Filling Machine High-Speed Filling Valve

Brief introduction of automatic 3-in-1 drinking water filling machine:
The automatic water dispenser adopts a simple three-fold filling mechanical structure, simple control operation, and can produce various specifications of PET bottle-shaped bottled water filling. The parts in contact with the PET bottle of the drinking water filling machine are made of stainless steel, which is hygienic and easy to clean.
The automatic 3-in-1 drinking water filling machine adopts bottleneck transmission technology to realize automatic washing, filling, capping and other processes, most of the electrical system of drinking water equipment adopts foreign advanced products, and the part that is in contact with liquid machinery The load is made of stainless steel, which has the characteristics of wear-resistant, stable, low failure rate and high product quality.



3-in-1 drinking part cleaning of automatic filling machine:
The bottle passes through the air duct, and then is sent to the 3-in-1 washing machine through the bottle star wheel. The turntable of the bottle washer is equipped with a bottle clamp, which clamps the bottle mouth, and rotates 180° along the guide rail to make the bottle mouth downward. Especially in the area of the rinsing device, the bottle washing nozzle clamps the rinsing water to wash the inner wall of the bottle. The bottle is rinsed, drained, and then the guide rail is turned 180° to complete the work of clamping in the bottle rack. After the dial-coded bottle washed by the star wheel washer, it is transferred to the drinking water filling machine.





The filling part of the automatic 3-in-1 drinking water filling machine:
The automatic filling machine enters the tray of the beverage bottle filling machine and is stuck by the bottleneck, which will increase under the action of the cam of the bottle, and the filling valve of the bottle opens the top. Filling adopts gravity filling method. After the filling valve opens the material, the filling valve completes the filling process. The bottle after filling leaves the filling valve, and the bottle is capped into the click wheel by the adapter card bottleneck machine.



The capping part of the automatic 3-in-1 drinking water filling machine.The anti-rotation knife on the capping machine jams the bottleneck, keeping the bottle upright and preventing it from rotating. The capping head continuously rotates on the capping machine, and realizes the actions of filling, cleaning and capping under the action of the cam to complete the entire capping process. The final bottle is transferred from the conveyor belt to the bottle by the capping machine dial, and the vial is automatically transferred to the drinking water filling machine by the conveyor belt.



Technical features of automatic 3-in-1 drinking water filling machine:
(1) Drinking water equipment has compact structure, complete control system, convenient operation;
(2) To change the bottle type, only need to replace the screw cap part of the star wheel to realize the arc guide plate;
(3) The parts in contact with the materials are made of high-quality stainless steel, no process dead angle, easy to clean;
(4) The high-speed filling valve is adopted, the liquid level is accurate and there is no liquid loss, and the filling process requirements are guaranteed;
(5) The capping head adopts a magnetic constant torque device to ensure the capping quality without damaging the bottle cap;
(6) Adopt an efficient coverage management system with complete automatic control and protection devices;
(7) The 3-in-1 filling machine is equipped with a complete overload protection device, which can effectively protect the safety of equipment and operators;
(8) The control system has functions such as production speed control, leak detection, automatic shutdown of jammed bottles, output counting, etc.;
(9) The main electrical components and pneumatic components are all world-famous products;
(10) The operation of the automatic 3-in-1 drinking water filling machine adopts advanced touch screen control, which can realize man-machine dialogue operation.
