Introduction of five gallon big bucket water filling machine:
The main equipment of the five-gallon vat water filling machine is composed of racks, water tanks, pipes, water pumps, cylinders, transmissions, electrical appliances, etc. It completes the empty barrel washing, filling, capping and other actions, and through multiple washing procedures, quantitative filling , Automatic capping with lid, all actions of the five-gallon vat water filling machine production line are controlled by computer, to achieve stable flushing effect, accurate filling capacity, and sealed capping effect.
Flow chart of large barrel water filling production line:
Details of the 5 gallon vat water filling equipment:
1. Automatic capping machine
BG series automatic capping machine is a special capping equipment for 5-gallon reusable barrel. The bottle cap is not damaged and can be reused for many times. The machine adopts computer control, adjustable production capacity and pneumatic adjustment of capping mechanism, solves the difficulties of barrel height tolerance and barrel mouth tolerance, and greatly improves the success rate of capping.
Main technical parameters: number of capping heads: 1, 2 and 3 are stacked in turn according to the child.
Bucket size: Φ 276X490mm
Capping capacity: 100 to 12000 barrels / hour
Air source: pressure: 00.6-0.8mpa, gas consumption: 180L / M
Overall dimension: 800 * 800 * 1650mm (depending on the actual number of heads)
Heavy child: About 150kg (depending on the actual number of heads)

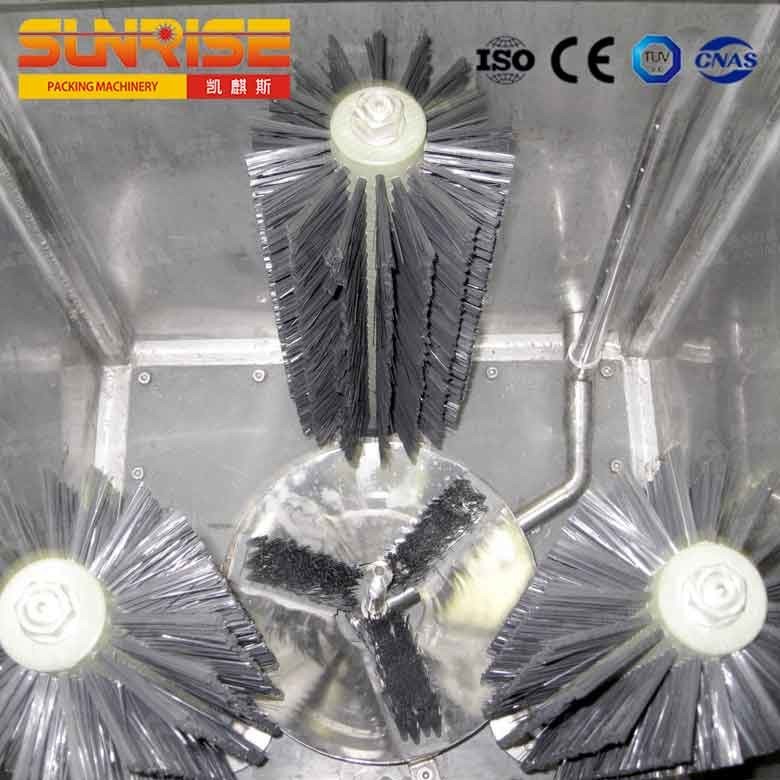

2. Fully automatic external brushing machine
The outer barrel cleaning machine is composed of a stainless steel frame, a sealing plate (stainless steel), a main rotating brush, a brush speed regulating motor, a dial speed regulating motor, a bottom rotating brush, a dial structure, a flushing water pump, a spray chamber, etc. .The whole is made of high-quality stainless steel, corrosion-resistant, and easy to clean. The main gas circuit components are all made by Taiwan Airtec. The machine has a compact structure, high efficiency and stability, high automation, and simple operation.
The main technical parameters:
Brush speed motor; 0.37kw wheel speed motor: 0.37kw Flushing water pump: 0.37kw
Dimensions: l620*920*1600mm (450 barrel specifications)Inlet pipe diameter: Φ32mm
3. Bottled water filling machine
The GF type barreling machine is the main equipment for the production of 5 gallons of bottled water. It consists of racks, water tanks, pipes, water pumps, cylinders, transmissions, electrical appliances, etc. It completes empty barrel washing, filling, capping and other actions, and passes multiple washing procedures. , Quantitative filling, automatic capping and capping, all actions of the whole machine are controlled by computer, to achieve a stable flushing effect, accurate filling, and a sealed capping effect.
Main technical parameters: Main machine station: 3 rows and 13 channels Applicable barrel type: Φ270*490mm (10 gallons, 5 gallons, 3 gallons)
4. Light inspection device
The DL-type light inspection box is used for visual inspection of the objects inside and outside the barrel, and to check the sundries inside and outside the barrel. The light inspection box adopts a stainless steel protective outer cover, and the light illuminance is comfortable and suitable. It not only meets the national health standards, but also can clearly check the impurities, defects and glumes inside and outside the barrel.
Power: 0.08 kw
Voltage: Single-phase 220V Dimensions: 600*200*350mm
5. Heat shrinkable film machine
The heat shrinkable machine is composed of a steam generator and a shrinkage channel. The water source is connected to the steam generator to generate steam after heating. After the full water bucket passing the lamp inspection is sleeved with a plastic sleeve, the plastic sleeve is heat shrinkable through the steam channel.
Steam generator power: 3kw (depending on actual output)
Overall dimension of steam generator: 500 * 450 * 1300mm (depending on actual output)
Size of contraction channel: 500 * 200 * 150mm (depending on the actual output)
6. Automatic bucket bagging machine
Aiming at the shortcomings of the existing barreled water bagging process, Xinmao independently developed and provided a new type of bucket bagging machine with a crawler structure that does not damage the bottle mouth. Simple structure, effectively improve production efficiency and reduce production costs. Does not hurt the mouth of the bottle.
There are 10 washing processes in the production line of the large barrel water filling machine
(can be adjusted according to customer requirements)
