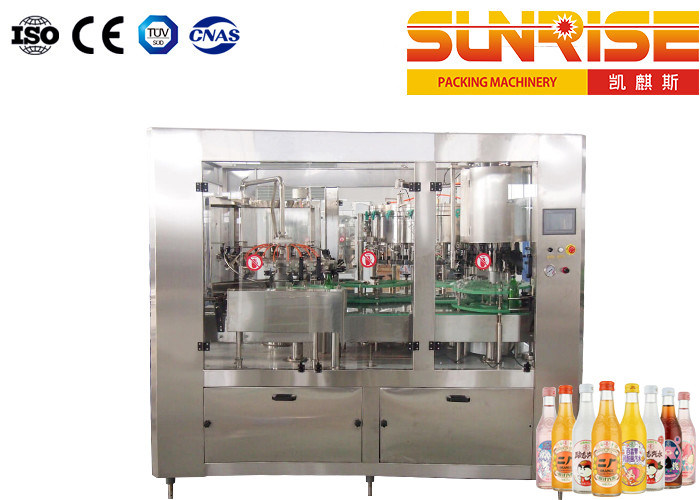

36000B/H Soft Drink Filling Line for glass bottle

Carbonated-Soft-Drink Filling Line

Carbonated-Soft-Drink Filling Line Description:

    Carbonated-Soft-Drink Filling Line could be separated to 3 modules. The height of the bottle-out conveyor is adjustable. Bottles are conveyed to rinser, filler and capper through star wheel and conveyed out finally through bottle-out conveyor. Equip alarm device for bottle block, bottle absence, cap absence and overload. The machine meets the national food hygienic standard, with high automation and easy to operate. Except the down framework, the transmission parts and some parts that must be made of special materials. Other parts are all made of stainless steel 304.

    The gripper is made of stainless steel, the position where hold the bottleneck is made of food standard rubber; Rinsing time can be guaranteed for 4 seconds. Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.

Long-tube filling valves are adopted, with CO2 fully exchanging with air inside glass bottles, to decrease the rinsing of oxygen effectively. with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.

CSD Drink Processing System Main Features:

    CSD Drink Processing System has the reasonable structure, high precision mix, plenty CO2 mix. Mainly applies to all carbonated beverages mixed processing, and can also be used for other beverages. It is the main equipment in complete equipment of carbonated beverage manufacturing.

    Advanced mass flow in-line blending and carbonation for reduced product & ingredient losses;

    High efficiency deaeration;

    Simplified, user-friendly, operator interface;

    Automated “ no-dump” start-up capability;

    Complete product recipe management;

    Ingredient usage trending and totaling;

    Improved product yields and consistency;

    Reduced B.O.D. cost;

    Fast, favorable return-on-investment.
