330ml Glass Bottle Filling Line , Soda Bottle Packing Machine

330ml Glass Bottle Filling Line , Soda Bottle Packing Machine

  • High Light

    200ml Glass Bottle Filling Line

    ,

    15 Kw Soda Bottle Packing Machine

    ,

    200ml Soda Bottle Packing Machine

  • Capacity
    3000-36000BPH
  • Volume
    330-1500ml
  • Bottle Diameter
    50-96mm
  • Bottle Height
    150-320mm
  • Condition
    New
  • Automatic Grade
    Automatic
  • Key Selling Points
    High-accuracy
  • Applicable Industries
    Food & Beverage Factory
  • After-sales Service Provided
    Video Technical Support,Online Support,Free Spare Parts,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    KQSHQ
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

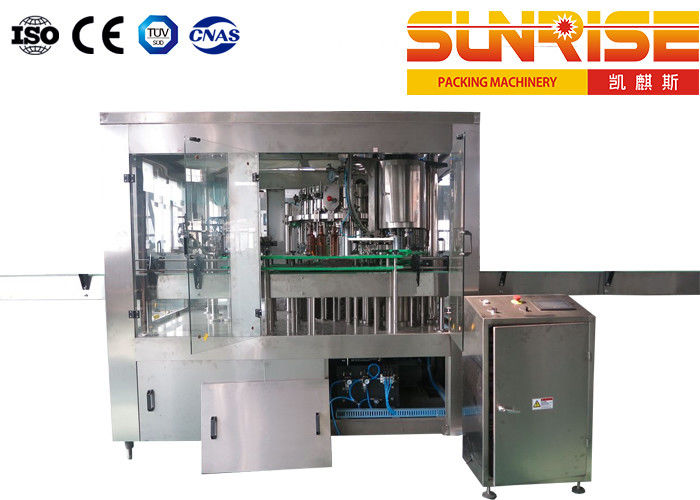

330ml Glass Bottle Filling Line , Soda Bottle Packing Machine

Carbonated Beverage Glass Bottle Filling Line



Carbonated Beverage Glass Bottle Filling Line Description:



    The glass bottle soda water production machine is 3-in-1 filling mono-bloc. Soft drink filling machine is used in the glass bottle filling carbonated beverage (gas containing beverage), such as coco-cola, spirit drink etc. Carbonated soft drink filling machine is combined with glass bottle washing, filling and capping into one machine. We are a Chinese manufacturer and manufacturer of beverage filling equipment for domestic beverage factory. We also provide beverage filling machines for Chinese trading companies.



    The whole glass bottle soda water production machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.


    The frequency changing technology is used to adjust the operation speed sleeplessly.



Main parameters:
Description Mono-bloc washing-balanced pressure filling – capping unit
Capacity 6000-24000BPH
Material Body-SUS304
Rinsing pressure 0.25-0.3Mpa
Filling temperature ≤4℃
Filling precision ≤+1mm
Filling pressure 0.25-0.4Mpa
Compressed air pressure 0.4-0.6Mpa



    This carbonated filling mono-bloc is made of stainless steel. Carbonated soft drink filling equipment has compact structure, good appearance, scientific and reasonable design. Soft drink filling machine adopts the technology of direct contact with air conveyor, taking stead of the feeding screw and conveyors, which making it much more convenient to change the bottle shape. The whole filling machine installed a few pressure transmitters and liquid level transmitter, the system of the transformation of more automation.



    This machine adopts advanced bottle neck clamping system, which get rid of the requirement of bottle height. So, there is very a few parts need to change while different bottles are used on the same machine, such as the guide plate and the poking wheel.
    Perfect stainless steel bottle gripper of rinsing avoids the secondary contamination by no touch with the bottle screw parts.
Soft drinks Filler is equipped with high-speed filling valve of high precision filling.



    The capping head adopts constant magnetic torque device to ensure the high capping quality without damage. Highly efficient cap settling system, cap feeding system and no bottle no cap system make the whole capping system perfect.
It adopts spiral descent fashion for the support plate for bottle bottom at the outlet thumb wheel. It removes the need of adjusting the inlet bottle height for change bottle models.
    This
carbonated beverage filling machine adopts advanced PLC control and touch screen. The key electric elements are from international famous brands.







Bottle Lines For Carbonated Soft Drinks In Glass Main Equipment:



    1. Beverage Preparation System



330ml Glass Bottle Filling Line , Soda Bottle Packing Machine 0

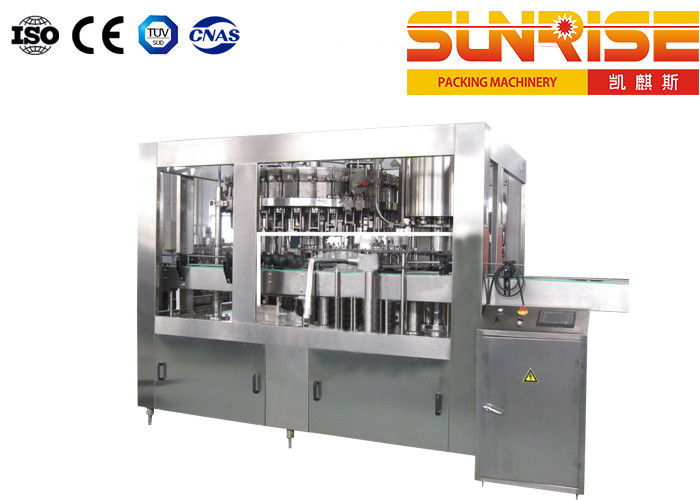

    2. Glass Bottle 3in1 Washing Filing And Capping Machine



330ml Glass Bottle Filling Line , Soda Bottle Packing Machine 1



    3. Conveyor



330ml Glass Bottle Filling Line , Soda Bottle Packing Machine 2
