Juice Aluminum Can Filling Machine , SUNRISE Soft Drink Production Line

Juice Aluminum Can Filling Machine , SUNRISE Soft Drink Production Line

  • High Light

    2.5L Aluminum Can Filling Machine

    ,

    SUNRISE Soft Drink Production Line

    ,

    2.5L Soft Drink Production Line

  • Device Model
    KQS60-8
  • Number Of Filling Heads
    60
  • Number Of Capping Heads
    8
  • Production Capacity
    500CPM (500ml)
  • Dimension
    5400*2900*2000mm
  • Weight
    7500kg
  • Condition
    New
  • Automatic Grade
    Automatic
  • Applicable Industries
    Food & Beverage Factory
  • After-sales Service Provided
    Video Technical Support,Online Support,Free Spare Parts,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    KQS60-8
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

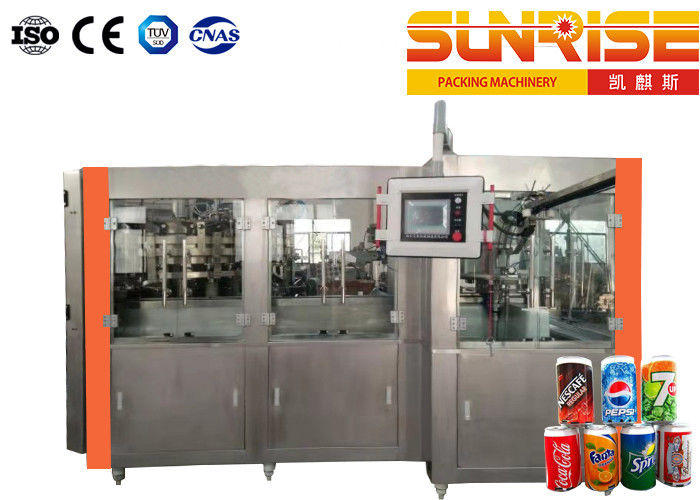

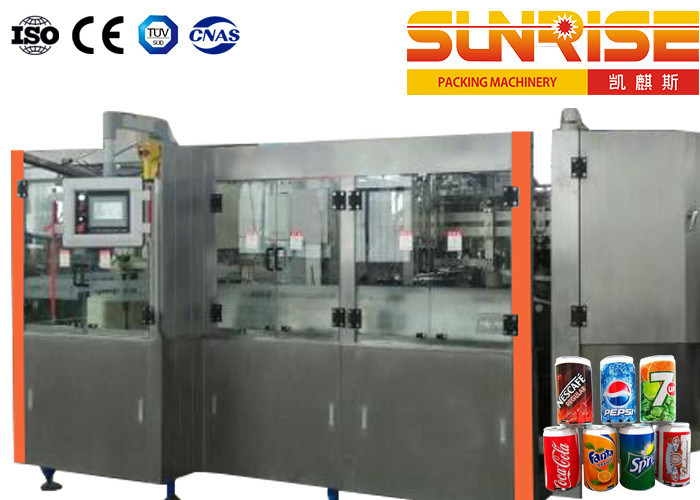

Juice Aluminum Can Filling Machine , SUNRISE Soft Drink Production Line

Automatic Aluminum Cans Filling Machine For Juice And Carbonated Drinks Production Line





SUNRISE Aluminum Can Filling Machine Main Description:



    SUNRISE aluminum cans filling machine is suitable for cans filling and sealing for juice or carbonated beverage such as BEER, CSD, etc. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can be equipped long-distance control system. It is the preferred equipment for the medium beer and beverage plant.

Cans are pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed, air is discharged, and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to capper. Capper will take cap, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can is transferred to conveying system.



SUNRISE Aluminum Can Filling Machine Main Parameters:



Model KQS9-2 KQS20-4 KQS30-6 KQS60-8
Can size Depends customer Depends customer Depends customer Depends on customer
Filling Temperature 2-4℃ 2-4℃ 2-4℃ 2-4℃
Filling head 9 20 30 60
Sealing Head 2 4 6 8
Filling accuracy ±2mm ±2mm ±2mm ±2mm
Capacity(500ml) 45-60cans/min 100-120cans/min 195-245cans/min 400-500cans/min
Overall size(mm) 2900*1700*2180 4000*2520*2450 4160*2520*2450 5400*2900*2000
Weight 4070kg 6460kg 8670kg

11000kg
