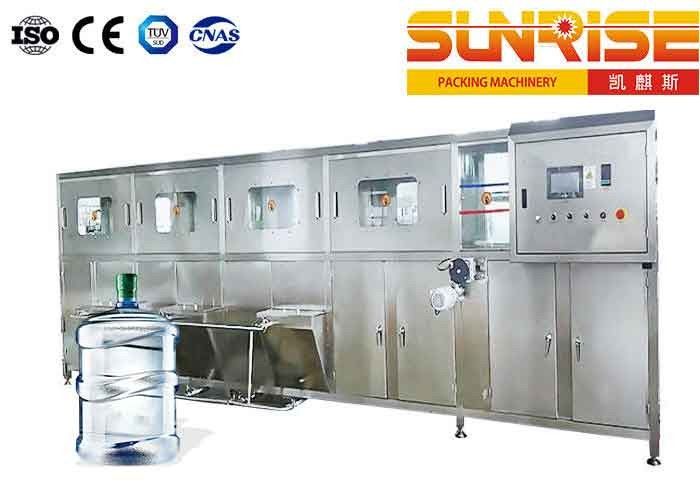

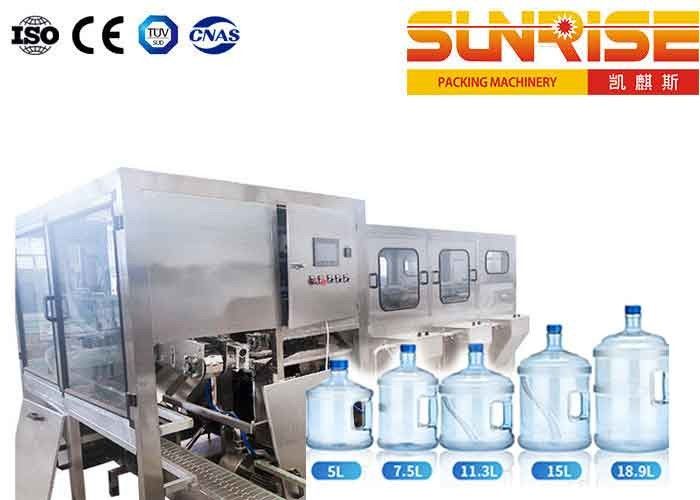

Gallon Water Bottling Machine KXG 300B/H

Gallon Water Bottling Machine KXG 300B/H

  • High Light

    2000BPH 5 Gallon Water Bottling Machine

    ,

    5 Gallon Water Bottling Machine

  • Capacity
    1000BPH 2000BPH
  • Applicable Bottle
    Plastic Bottle 5L-10L Plastic Screw Cap
  • Applicable Filling Content
    Mineral Water, Wine, Non-carbonated Water
  • Washing Station
    12 18
  • Filling Nozzle
    12 18
  • Capping Head
    4 6
  • Main Motor Power
    3.5kw 5.5kw
  • Water Pump Power
    0.37kw
  • Dimension (mm)
    2500*2100*2450 3200*2500*2450
  • Weight (kg)
    4000 5000
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    KXG
  • Minimum Order Quantity
    1
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram

Gallon Water Bottling Machine KXG 300B/H

1200 HPB 5 Gal Water Filling Machine introduce:

Specifications

Production: 60 -1200 Bottles/Hour

Bottle material: plastic

Suit for bottle size: 4 Gallon, 5 Gallon and 6Gallon can also be applied, but the sample bottle shall be provided.

We will assist you with establishing your bottled water plant from the conception of the idea to when you are ready to open your plant.



Model KXG-100B/H KXG-200B/H KXG-300B/H KXG-450B/H KXG-600B/H KXG-900B/H KXG1200B/H
Filling heads 1 2 3 4 4 6 8
Volume 18.9cbm 18.9cbm 18.9cbm 18.9cbm 18.9cbm 18.9cbm 18.9cbm
Barrel size Φ270*490mm Φ270*490mm Φ270*490mm Φ270*490mm Φ270*490mm Φ270*490mm Φ270*490mm
Capacity 100 200 300 450 600 900 1200
Gas pressure 0.5-0.6 0.5-0.6 0.5-0.6 0.5-0.6 0.6 0.6 0.6
Gas consumption 0.37 0.37 0.6 0.8 1 1.5 1.8
Motor power 1.38W 1.75W 3.8W 3.8W 7.5W 9.75W 13.5W
Rated voltage 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Weight 680kg 800kg 1500kg 2100kg 3000kg 3500kg 4500kg





5Gallon Water Bottle Filling line equipment:

Automatic bottle decapper ⇒Automatic bottle brush washer ⇒Automatic bottle loader ⇒Automatic bottle washer filler capper ⇒Automatic cap washer ⇒Automatic light checking and sealing machine
