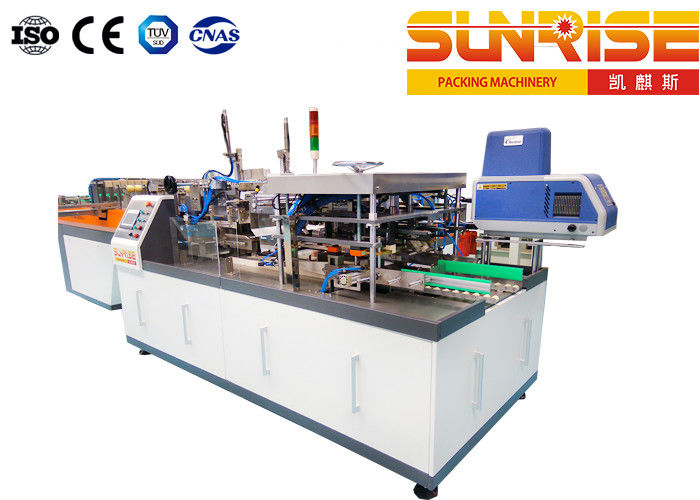

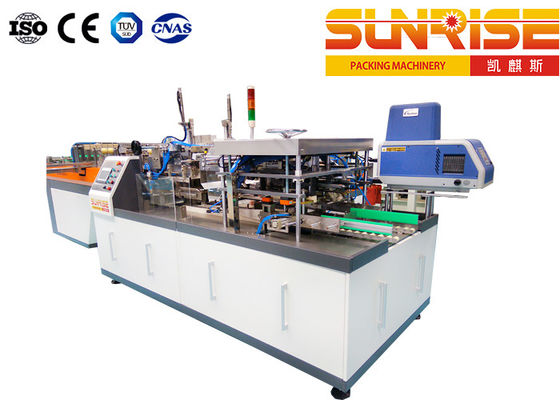

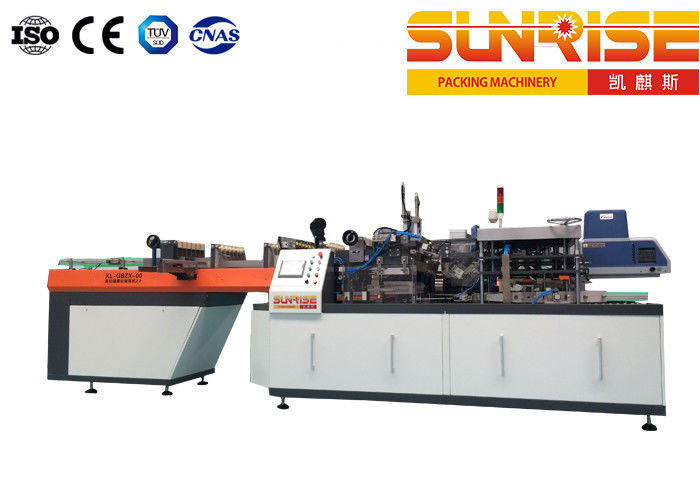

Packing Machine Price Wraparound Case Packer
Ⅰ Summary
SUNRISE Wraparound Case Packer has a mesh belt conveyor that can arrange the products neatly into six rows, five rows, or four rows (changing according to different packaging ways). Paper is stacked at another place. Use the robotic arm principle to pull the paper downwards and push it forward by using rollers. When the paper and products reach the positioning point, through swaying to the left and right, the pushing mechanism makes the products lightly drop onto the paper. There is a group of cylinders at the bottom of paper. The sucking discs will pull the paper and products downwards for forming. After forming, the chain conveys them forward. The advancing action is carried out repetitively. After the case is formed, every time it moves forward, glue spraying and gluing actions will be carried out, and it will be pushed forward to the conveyor belt. Then the action of stacking on the pallet is carried out. Pop cans adopt the bottle feeding mode assisted by the rocker, and plastic bottles adopt the bottle feeding mode assisted by the automatic bottle distributor.
Ⅱ Main Technical Parameter
1.Model No.: KYXLWAC-25HD
2.Type: Slice type carton packing machine, sealing carton with hot-melt adhesive
3.Capacity: 35 case/min (Add foam is 32 case/min; without foam is 35 case/min)
4.Power Supply: AC 380V/50HZ, 3 Phase
5.Control Power: AC 220V/50HZ & DC24V, Single Phase
6.Effective Power:
Main Motor-------------------------1.5KW
Bottle Conveyor Belt---------------1.5KW
Case Supply Motor-----------------0.25KW
Unscramble Bottle Motor-----------0.37KW
Hot-melt Glue Supply Machine------5.25KW
Control System---------------------0.5KW
Total Power: 9.37KW
7.Compressed Air Pressure: ≥6.0 KG/CM²
8.Air Consumption:1000L/Min
9.Packing Material: Slice type corrugated paper
Ⅲ Accessory Brand
1.PLC:Germany SIEMENS
2.Electrical components:France SCHNEIDER
3.Electronics:Germany SICK & Japan OMRON
4.Touch screen:Germany SIEMENS
5.Air cylinder or solenoid valve:AIRTAC
6.Motor reducer:Taiwan Taichuang.
7. Heavy turbine reducer and motor:domestic
8. Hot melt adhesive machine:XHS
9. Vacuum generator:Germany Schmalz
10.Conveyor:Using UNI-SNB Series plastic steel conveyor belt L2870mm
