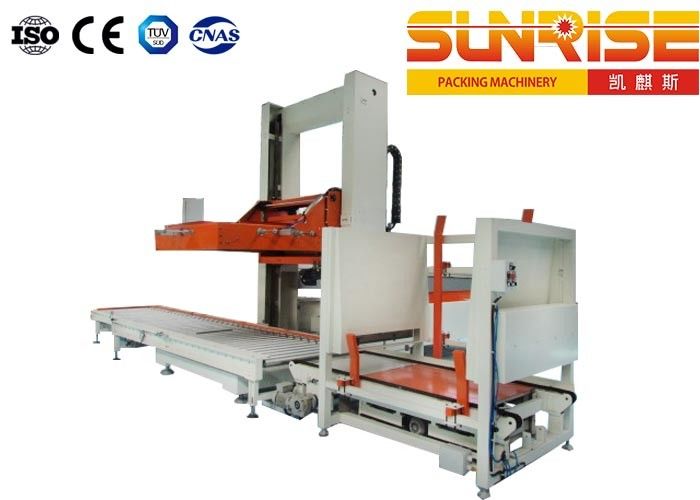

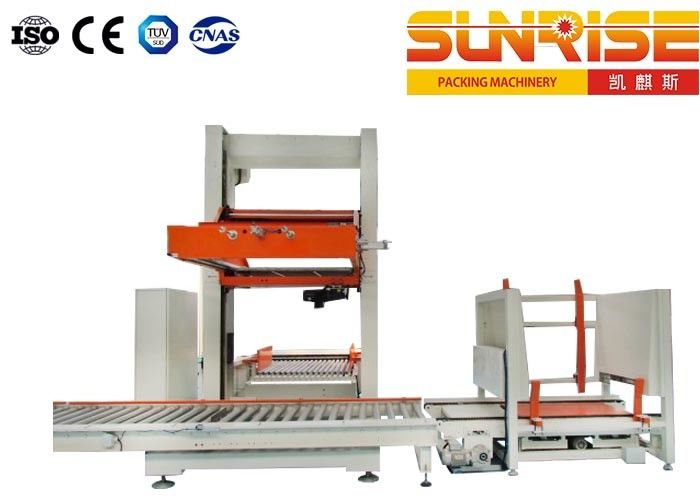

Full-automatic low level gantry carton box bag pallet palletizer
The palletizer is used to palletize the cartons that have been loaded into vessels onto pallets (wood, plastic) according to certain arrangements for automatic piling. The cartons can be piled into multiple layers and pushed out, and can be conveniently conveyed by the forklift truck to the warehouse for storage. The equipment adopts PLC + touch screen control, realizing intelligent operation and management. It is convenient and easy to operate. It can greatly reduce labor force and lower labor intensity. It is designed with the concepts of high speed, stability, and space saving. It adopts split type plate release, which is faster and saves more space. With multiple functions in one machine, it realizes adjustment rapidly and frees you from the worry of replacing the piled products. Application range: corrugated cases, plastic cases, barrel-shaped packaging materials, and bag-shaped packaging materials.
Touch screen operation is adopted to accomplish the man-machine dialogue, using the Siemens PLC programmable control number
The symmetry and compact structure design, suitable for the narrow space of the existing production sites
Taken the pallet database is big, can accommodate 15 empty pallet, which can realize automatic supply pallet. (pallet library is optional)
Don't have to change the stacking parts can complete several stacking way, only need to obtain the parameters is ok.
|Stacking Height||Gear Motor|
|Machine Size||L11500 mm x W6000mm x H4300mm|
|Air consumption||110L/min 6kg/cm²|
|Pallet conveyor H||650+-50mm|
|Wrapping Height||1800mm(standard); 2000/2400/2800/3200mm optional|
1. Use the SEW motor drive
2. Use the safety protection device
3. Strong durable. Adjustable base functions
4. Portable fault automatic display
