Bottle Shrink Sleeve Label Machine 24000 Bottles Per Hour

Bottle Shrink Sleeve Label Machine 24000 Bottles Per Hour

  • High Light

    24000 BPH shrink sleeve label machine

    ,

    Bottle Shrink Sleeve Label Machine

    ,

    24000 BPH automatic shrink sleeve applicator machine

  • Production Speed
    400 Bottles/min
  • Host Size (mm)
    2100L*900W*2000H
  • Type Of Label Material
    PVC / PET / OPS
  • Applicable Bottle Diameter Range (mm)
    38-120
  • Applicable Label Length (mm)
    30-220
  • Applicable Label Thickness (mm)
    0.035-0.06
  • Applicable Paper Tube Inner Diameter
    5"-10" Freely Adjustable
  • Shrinking Method
    Steam Shrinking Furnace
  • Use Steam Pressure
    0.2-0.5Mpa
  • Input Power
    6 KW
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    PVC / PET / OPS
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

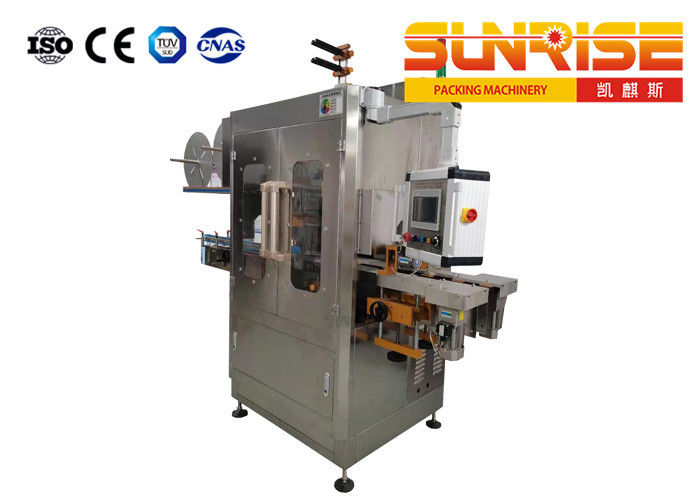

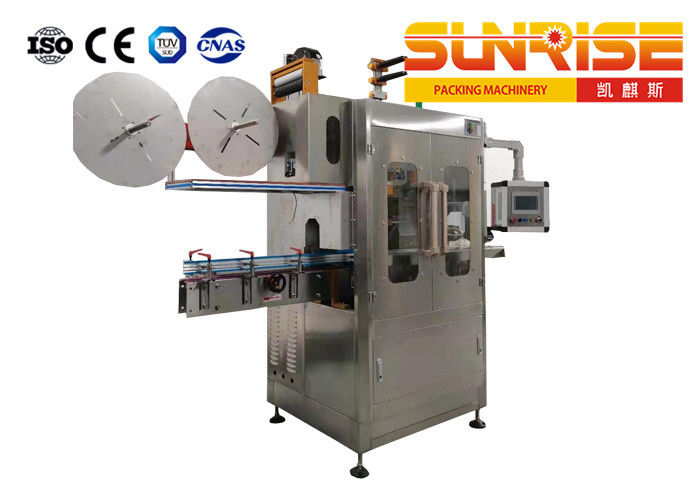

Bottle Shrink Sleeve Label Machine 24000 Bottles Per Hour

24000 Bottles Per Hour Automatic Sleeve Shrinking Labeling Machine



Automatic sleeve labeling machine



1. Technical Parameters



1. Production speed:

 400 bottles/min
2. Host size (mm):   2100L*900W*2000H
3. Type of label material:   PVC / PET / OPS
4. Applicable bottle diameter range (mm):   38-120
5. Applicable label length (mm):   30-220
6. Applicable label thickness (mm):   0.035-0.06
7. Applicable paper tube inner diameter:   5"-10" freely adjustable
8. Shrinking method:   steam shrinking furnace
9. Use steam pressure:   0.2-0.5Mpa
10. Input power:   6 KW
11. Input voltage:   3P 50HZ 380 v

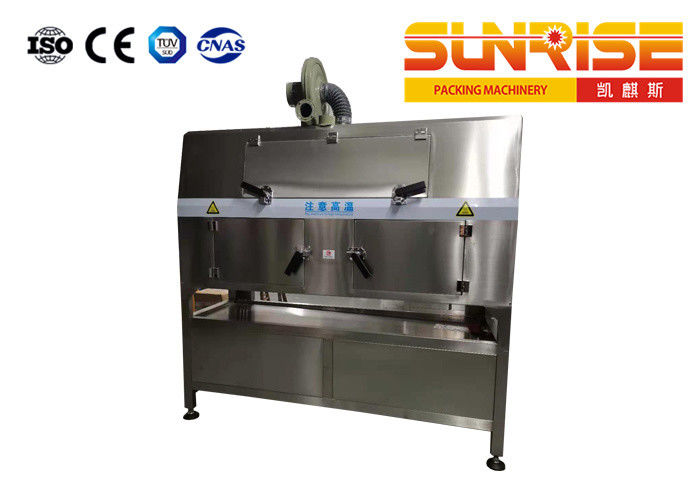

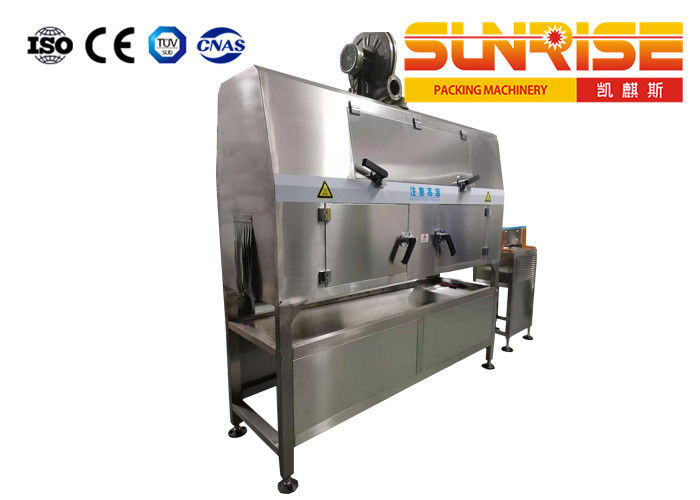

>>Steam shrink furnace


The new steam shrinking furnace is suitable for different and irregular round bottles, square bottles, flat bottles and other bottle shapes. It is convenient to adjust and maintain, and the shrinkage is flat. The steam ejection method is evenly distributed in the low-pressure steam drum and adopts seamless steel pipe design. It is three-stage adjustable, and the height, front and back, and air output of each stage can be adjusted separately to achieve the most perfect contraction effect. The whole machine shell is made of stainless steel and insulated, which not only saves energy, but also complies with international safety standards. The stainless steel drain pan at the bottom concentrates condensed water. The whole machine adopts waterproof design, which is convenient for operation and maintenance. To


Bottle Shrink Sleeve Label Machine 24000 Bottles Per Hour 0Bottle Shrink Sleeve Label Machine 24000 Bottles Per Hour 1Bottle Shrink Sleeve Label Machine 24000 Bottles Per Hour 2



>>Steam Generator


This series of fully automatic electric steam generators uses copper-body high-pressure submersible vortex pumps for water intake, which has a short water supply time and is durable. The water tank is equipped with a liquid level float to automatically control the water intake. The working system is fully automatically controlled, and the water source and power supply can be connected for about 5 minutes to continuously output steam, and the working efficiency is extremely high.
