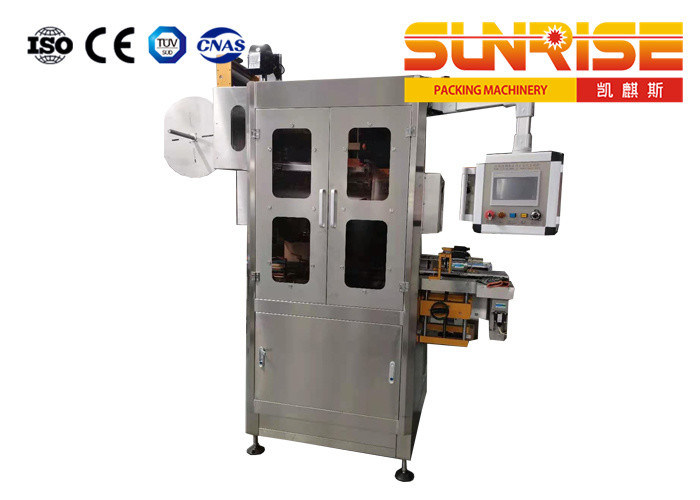

9000 Bottles Per Hour Automatic Sleeve Shrinking Labeling Machine
>>Steam shrink furnace
The new steam shrinking furnace is suitable for different and irregular round bottles, square bottles, flat bottles and other bottle shapes. It is convenient to adjust and maintain, and the shrinkage is flat. The steam ejection method is evenly distributed in the low-pressure steam drum and adopts seamless steel pipe design. It is three-stage adjustable, and the height, front and back, and air output of each stage can be adjusted separately to achieve the most perfect contraction effect. The whole machine shell is made of stainless steel and insulated, which not only saves energy, but also complies with international safety standards. The stainless steel drain pan at the bottom concentrates condensed water. The whole machine adopts waterproof design, which is convenient for operation and maintenance.
Technical parameters:
1. Production speed: | 100-150 bottles/min |
2. Host size (mm): | 2100L*900W*2000H |
3. Type of label material: | PVC / PET / OPS |
4. Applicable bottle diameter range (mm): | 38-120 |
5. Applicable label length (mm): | 30-220 |
6. Applicable label thickness (mm): | 0.03-0.13 |
7. Applicable paper tube inner diameter: | 5"-10" freely adjustable |
8. Shrinking method: | steam shrinking furnace |
9. Input power: | 3 KW |
10. Input voltage: | 2P 220V 3P 380 v |
>>Steam Generator
This series of fully automatic electric steam generators uses copper-body high-pressure submersible vortex pumps for water intake, which has a short water supply time and is durable. The water tank is equipped with a liquid level float to automatically control the water intake. The working system is fully automatically controlled, and the water source and power supply can be connected for about 5 minutes to continuously output steam, and the working efficiency is extremely high.
