Air Duct Automatic Secondary Packaging System For PET Bottle

Air Duct Automatic Secondary Packaging System For PET Bottle

  • High Light

    Air Duct Automatic Secondary Packaging System

    ,

    PET Bottle Automatic Secondary Packaging System

  • Production Capacity
    ≧15000BPH
  • Applicable Product
    PET Bottle
  • Fan Power
    3kw
  • The Cross-sectional Size
    240mmX220mm
  • Air Volume
    2200-2500m³/h
  • Wind Pressure
    600-1300Pa
  • The Maximum Weight Of A Single Bottle Conveyed By The Air Duct
    120g
  • Air Duct Conveying Speed
    1-3m/s
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    KYFS210-FD
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

Air Duct Automatic Secondary Packaging System For PET Bottle

KYFS210-FD Type Air Supply-Air Duct



>>KYFS210-FD type air supply-air duct



The air conveying line is a device that uses wind to transport empty PET bottles, which is widely used in the transportation of PET empty bottles in the beverage industry. It realizes that the empty bottles produced from the bottle blowing machine are directly transported to the filling machine for disinfection, washing, filling and sealing, which reduces the turnover pollution of the empty bottles during the conveying process and saves production costs. The conveying line has a long conveying route, diversified layout, and can be conveyed horizontally, up and down, and turning. In this way, the space of the workshop can be fully utilized, and the high-efficiency and high-speed delivery of PET bottles has been achieved to meet the high-speed filling machine.



1. Main technical parameters



1. Production capacity:   ≧15000BPH
2. Applicable product:   PET bottle
3. Fan power:   3kw
5. Air volume:   2200-2500m³/h
6. Wind pressure:   600-1300Pa
7. The maximum weight of a single bottle conveyed by the air duct:   120g
8. Air duct conveying speed:   1-3m/s



二, Main structure and characteristics



The PET empty bottle air supply line is mainly composed of air duct, fan power, bottle dropping device, bottle clamping device, splitter and merging device.
The entire air duct is made of 2mm thick SUS304 stainless steel, which can resist various weak acids and weak alkalis. The cross-sectional size is 240mmX220mm. The air duct module is composed of straight ducts, curved ducts and lifting sections.

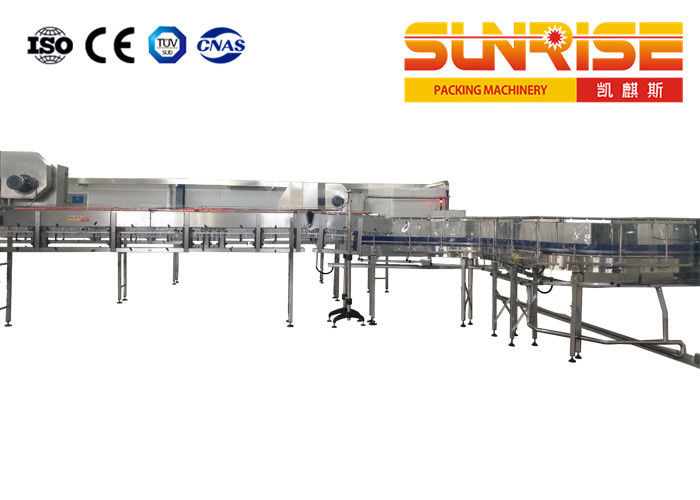

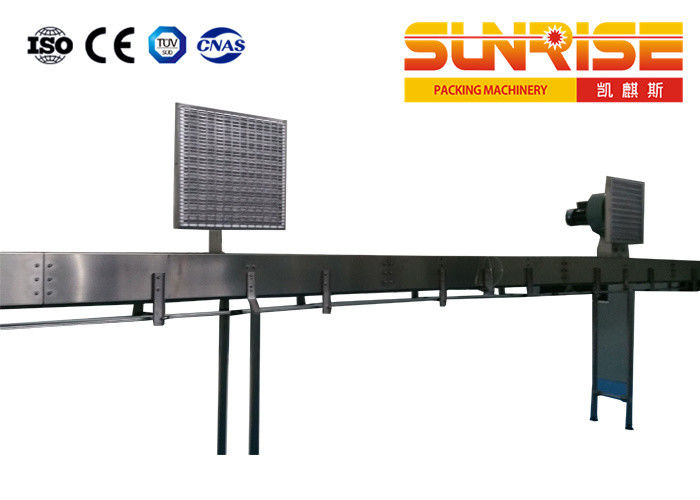

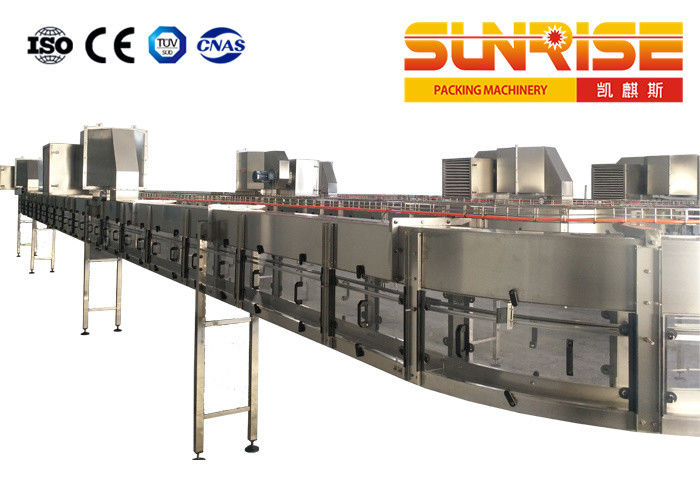

Air Duct Automatic Secondary Packaging System For PET Bottle 0Air Duct Automatic Secondary Packaging System For PET Bottle 1Air Duct Automatic Secondary Packaging System For PET Bottle 2



三. Accessories Brand



1. Ordinary centrifugal blower: Wuxi Maosheng
2. Cylinder: Airtac
3. Solenoid valve: Airtac
4. Photoelectric switch: OPTEX
5. Bottle card strip and bottle stop strip: DMM
6. Inverter brand: Danfoss (Danfoss), Taiwan Delta (Delta)



>>KYFS210-DL type air supply-fan power



Fan power is a power device that provides bottle movement. The number of each conveying device is calculated based on the length of the entire line and the range that a single fan power can convey. The fan power unit is composed of a centrifugal fan with a common filter and an air volume adjustment device. Air volume adjustment is used to adjust the air volume, divided into automatic adjustment and manual adjustment (selected by the customer), so that the bottle can be conveyed smoothly during the conveying process.



>>KYFS210-LP type air delivery-dropping device



The bottle drop device is installed at the position of the bottleneck guide bar. When it is not moving, it acts as a bottleneck guide bar. When it moves, it separates and releases the bottles focused here to ensure that there is no excessive capacity on the entire conveyor line. Make the device work normally. Select manual and automatic bottle dropping devices according to customer requirements.


>>KYFS240-JP type air delivery-bottle clamping device


The bottle clamping device is installed in the turning air duct, crossing lanes and before entering and merging. In order to prevent the single transmission of the bottle when it is in this part, the bottle is transmitted in groups to reduce the bottle body damage, bottle jam and bottle blockage. s installation.



>>KYFS210-BDQ air supply-combiner



In the process of bottle conveying, it is often encountered that the conveying bottle needs to be conveyed by changing lanes. For example, two bottle blowing machines are used for the production of one filling machine and need to be conveyed in parallel. Therefore, the combiner is also an important part of air conveying. In use, it can be added and selected according to the customer's requirements.


>>KYFS210-FDQ air supply-splitter


In the process of bottle conveying, it is often encountered that the conveying bottle needs to be conveyed in lanes. For example, one bottle blowing machine is used for the production of two filling machines and needs to be transported in separate lanes. Therefore, the splitter is also an important part of the air supply. In use, it can be added and selected according to the customer's requirements.



>>KYFS210-KZ Air Delivery-Control System



The control system of the air delivery equipment produced by our company is completely independently designed by our company. In the complete control system, our company will provide electrical control schematic diagrams, electrical components wiring diagrams and compile PLC control programs. For customers to use, repair and maintain.
