Film Wrapping Automatic Secondary Packaging System 10 Bags Per Minute

Film Wrapping Automatic Secondary Packaging System 10 Bags Per Minute

  • High Light

    Film Wrapping Automatic Secondary Packaging System


    10 Bags/Minute Automatic Secondary Packaging System

  • Film Charter Equipment Size
    6000×3200×2100 Mm
  • Heat Shrinkable Furnace Size
    1800×650×450 Mm
  • Packing Speed
    8 Packs/min-12 Packs/min
  • Conveyor Belt Width
    304 Mm
  • Voltage/power
    380V /19KW
  • Working Pressure
    0.6-0.8 Mpa
  • Air Consumption
    0.5 M3/min
  • Packaging Material
  • Place of Origin
    Jiangsu, China
  • Brand Name
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

Film Wrapping Automatic Secondary Packaging System 10 Bags Per Minute

10 Bags Per Minute Automatic Film Wrapping Machine


1. Product introduction:


          As one of the classic heat shrinkable film packaging equipment, KY6535 upper and lower film sealing and cutting heat shrinkable packaging machine (film wrapping machine) is a new packaging equipment designed and manufactured with high efficiency and continuous operation based on the characteristics of heat shrinkage of packaging film. It can automatically arrange and gather individual products (such as PET bottles) into groups, servo bottles, servo wrap films, and finally heat shrink and cool to form collective packaging. The packaged product is tightly bundled, has a regular and beautiful appearance, and saves packaging costs.


2. product properties


 1) Film charter equipment size:    6000×3200×2100 mm
 2) Heat shrinkable furnace size:    1800×650×450 mm
 3) Packing speed:    8 packs/min-12 packs/min
 4) Conveyor belt width:    304 mm
 5) Voltage/power:    380V /19KW
 6) Working pressure:    0.6-0.8 Mpa
 7) Air consumption:    0.5 m3/min
 8) Packaging form:    upper and lower film sealing, cutting and wrapping
 9) Packaging material:    LDPE

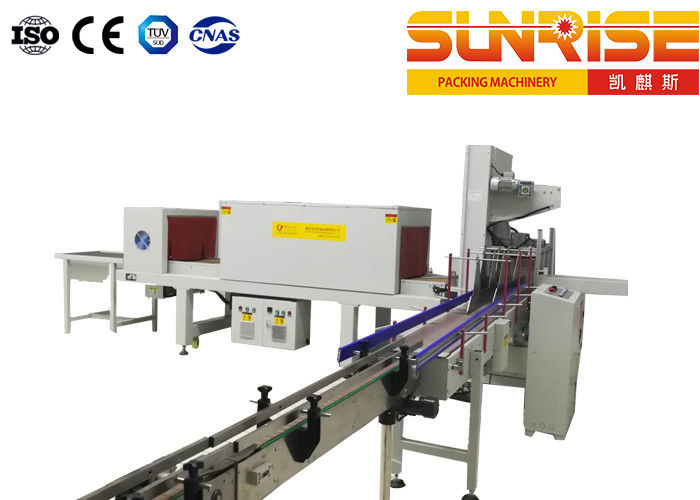

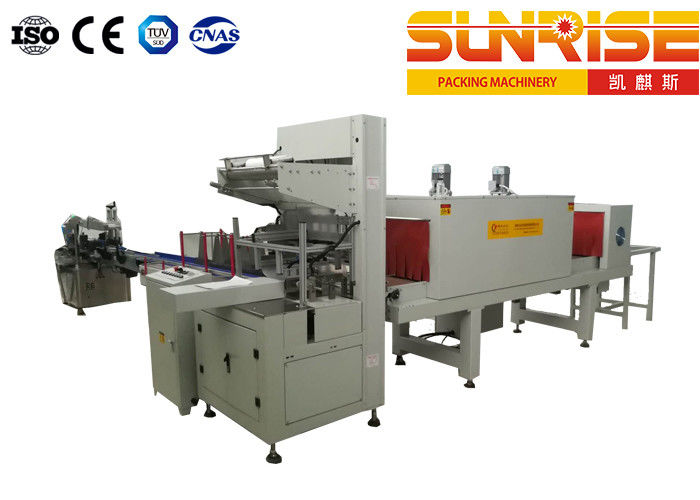

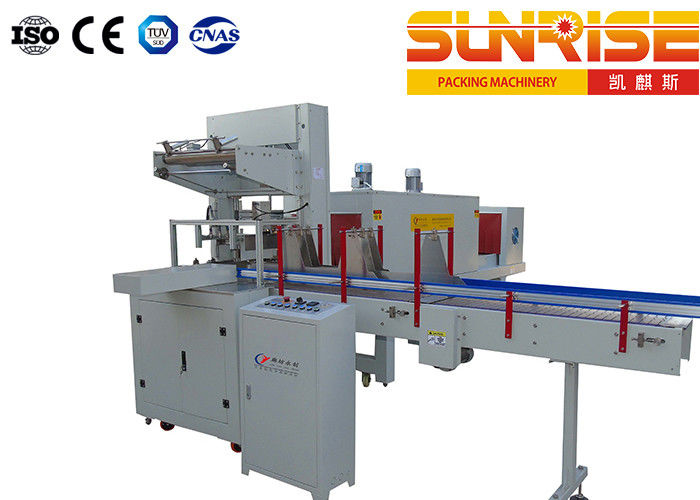

Film Wrapping Automatic Secondary Packaging System 10 Bags Per Minute 0Film Wrapping Automatic Secondary Packaging System 10 Bags Per Minute 1Film Wrapping Automatic Secondary Packaging System 10 Bags Per Minute 2


3. Feature:


* Designed for automatic packaging production lines for beer, beverages, purified water, juice, dairy products and other beverages.
* It has fully automated functions such as conveying and feeding, bottle unscramble, film wrapping, sealing and cutting, shrinking, cooling and shaping.
* Adopt film constant temperature heat sealing technology, the sealing is clear and firm.
* Sealing rapid cooling structure ensures higher sealing strength under high-speed production conditions.
* Adopt PLC program automatic cycle control, stable and reliable performance.
* The original imported guide rod cylinder ensures accurate movement and durability.
* The sensor switch controls the film feeding system to reliably regulate the film feeding length and reduce loss.
* All conveying is adjusted by frequency conversion, and the conveying is smooth and smooth.
* Independently researched and developed shrinkage channels, two sets of centrifugal hot air circulation systems, uniform heat balance, tight shrinkage and beautiful appearance.
* Three-layer heat insulation treatment, good heat preservation performance, fast heating, and energy saving.
* The enhanced cooling and shaping channel can quickly turn the packaging film into a high-strength state, which is convenient for storage and transportation.
* It is convenient to adjust the packaging combination and bottle type when changing, which can realize the function of one machine with multiple functions.

4. Equipment application:


-Products in containers such as PET bottles, glass bottles or cans.
-Mainly applicable products include mineral water, purified water, drinking water, beverages, beer, fruit juice, dairy products, condiments, etc.


5. Product specifications:


1) Packaging products: 380ml/500ml/1000ml/2000ml PET bottles, glass bottles, cans and other containers for drinking water, beverages, juices and other products;
2) Packaging combination: 2×3, 3×4, 4×6 (or other packaging combination);
3) Maximum packaging size: 440×300×330 mm;
4) With or without cardboard/half paper tray;
