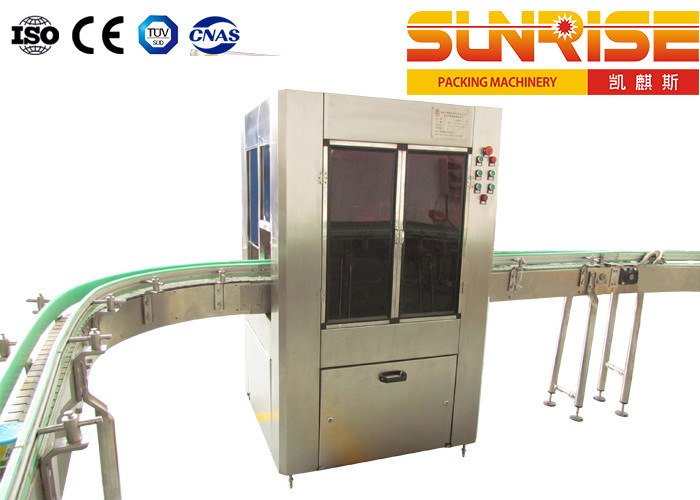

Longan Adding Machine
Main structure and characteristics
1. The main body of the equipment is made of high-quality SUS304 stainless steel or sanitary engineering plastics.
2. The equipment is small in size, easy to install, and has strong adaptability, without much modification to the original conveyor line.
3. The equipment is designed to be waterproof, and users can wash it as needed.
4. PLC automatic control is adopted to realize automatic control such as squeezing stop and no can stop.
5. The equipment has high stability and easy maintenance.
|1. Production capacity:||350 cans/minut|
|2. Applicable jar shape:||pop-up can with eight-treasure porridge: diameter φ66mm, height 90-122mm|
|3. Material used:||dried longan meat|
|4. Total power:||0.5kw|
|5. Total weight:||200kg|
|6. Power supply:||3X380VX50Hz|
|7. Control power supply:||DC24V/AC24V|
|8. Compressed air source:||0.8Mpa|
|9. Air consumption:||0.7m3/min|
|10. Dimensions:||length 2000mmX width 1000mmX height 1500mm|
|11. Addition rate:||over 85%|
|12. Turntable diameter:||800mm|
|13. The conveying floor height :||900mm-1000mm.|
1. Inverter: Danfoss (Danfoss), Taiwan Delta (Delta)
2. PLC: German Siemens (Siemens)
3. Touch screen: Taiwan Weinview (weinview)
4. Motor reducer: Wanlian
5. Main low-voltage electrical appliances and components: Schneider Electric, France
6. Electrical terminal: Phoenix Contact, Germany
7. Sensor: SICK, South Korea Autonics (autonics)
8. Pneumatic components: Taiwan AirTac (AirTac),
improve the working efficiency of the equipment.
