SUNRISE Aluminum Can Fruit Juice Filling Machine

Description:

SUNRISE aluminum can fruit juice filling machine is advanced filling and capping equipment, it’s designed on the basis of absorbing domestic and foreign advanced technology. It is mainly used in filling and capping carbonated beverages like soft drinks, cola, sparkling wine, etc. It has such advantages as advanced construction, stable working, convenient operation, and repair & maintenance, transducer control as well as high production efficiency.

It is the ideal equipment for mid-scale & small-scale beverage factory.

Related equipment:

01- Can Stacker

1-PLC control of the whole machine, fully automatic operation;

2-Adapt to various stack types and bottle types, easy to adjust;
3-Segmented transmission with high-quality conveyor chain, the output section can be arbitrarily lengthened;

4-Using 304 material, the whole machine is beautiful and elegant;

02 - Slide Type Empty Can Spray Washer

1-Scope of application: water spraying and drying on the slope of the tin can.
2-Water spraying box made by stainless steel structure.
3-The built-in stainless steel spray pipe, divide into two segments, hot and cold-water tank temperature higher than 85 degrees.
4-Tank cage, by 8 mm stainless steel.
5-The support frame is composed of stainless-steel square pipe.

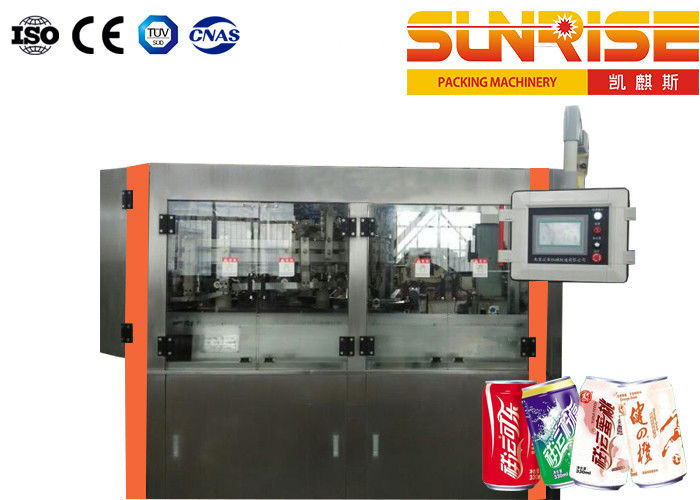

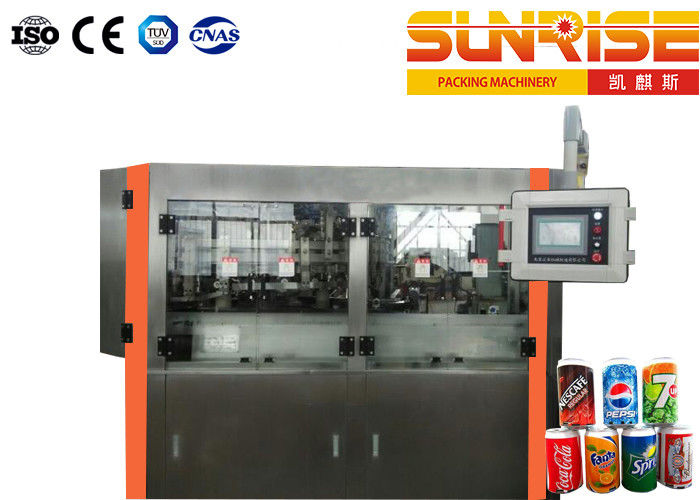

03-Aluminum Can Fruit Juice Filling and Sealing Machine

- Filling Parts.

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

- Capping Parts.

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

04 - Flat Conveyor.

- Energy saving. Highly efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine

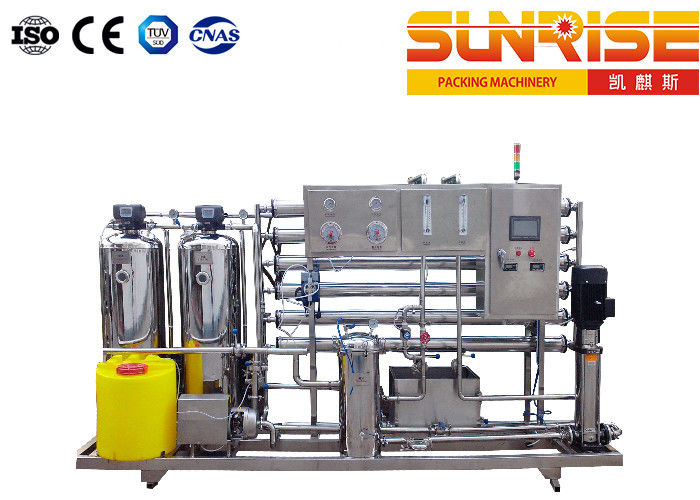

05 - RO Reverse Osmosis Water Treatment System

1-Raw water tank + Raw water pump
2-Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3-Reverse Osmosis (one level)
4-UV sterilizer
5-Finished water tank + Pure water pump

1)Stainless steel high pressure film shell
2)All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3)Online type pressure auto self-protection device
4)Online type electricity indicator (with stable compensation)
5)System safe protecting and alarm system
6)System frame

06 - Pre-process System

1-High-shear emulsifying tank + Plate heat exchanger
2-Mixing tank
3-UHT sterilizer + homogenizer machine + Buffer tank
4-Hot water system + Hot water tank
5-CIP cleaning system

07 - Spray Sterilizing Chiller

Including local control cabinet and electrical control device
1-Mainly for cooling and sterilization
2-The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
3-Nozzles are manufactured using U.S. technology and spray water evenly
4-Conveyor belt adopts Rexnord technology, flat surface with small wear

08 - Bottle Packing Machine

Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure, and temperature changes.

Whether you choose shrink-printed film, nested packs or wraparound cartons, SUNRISE packers gently feed bottles to ensure durable and cost-effective packs.
