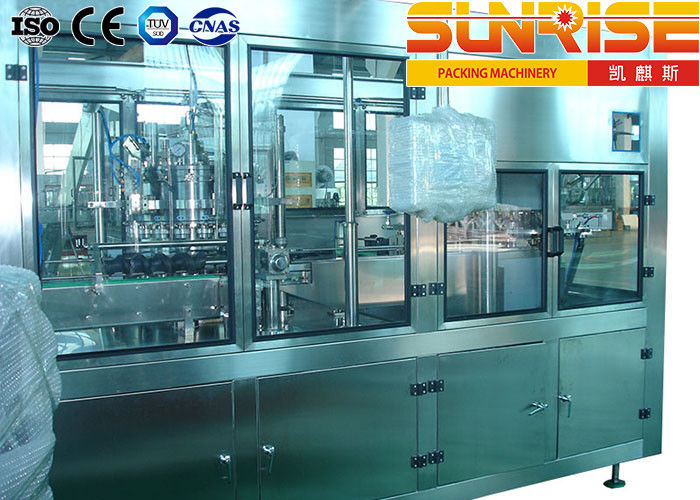

Fruit Juice Cans Filling Machine
Product introduction of fruit juice cans filling machine
1. This equipment is used for filling juice beverage, energy drinks in cans and so on.
2. This equipment can be used for different material of cans, such as plastic, iron, aluminum and so on, and the different size of cans is allowed. We can design the equipment according to your requirements.
1. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination.
2. It adopts the advanced machine, electrical equipment, and pneumatic control technology.
3. It has the characteristics of filling smoothly, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss.
4. It can equip long-distance control system according to the customers request.
5. It is the preferred equipment for the beer and beverage plant.
Model | KQS9-2 | KQS20-4 | KQS30-6 | KQS60-8 |
Can size | Depends customer | Depends customer | Depends customer | Depends on customer |
Filling Temperature | 2-4℃ | 2-4℃ | 2-4℃ | 2-4℃ |
Filling head | 9 | 20 | 30 | 60 |
Sealing Head | 2 | 4 | 6 | 8 |
Filling accuracy | ±2mm | ±2mm | ±2mm | ±2mm |
Capacity(500ml) | 45-60cans/min | 100-120cans/min | 195-245cans/min | 400-500cans/min |
Dimension(L*W*H) | 2900*1700*2180mm | 4000*2520*2450mm | 4160*2520*2450mm | 3200*3150*2450mm |
Weight | 4070kg | 6460kg | 8670kg | 11000kg |
