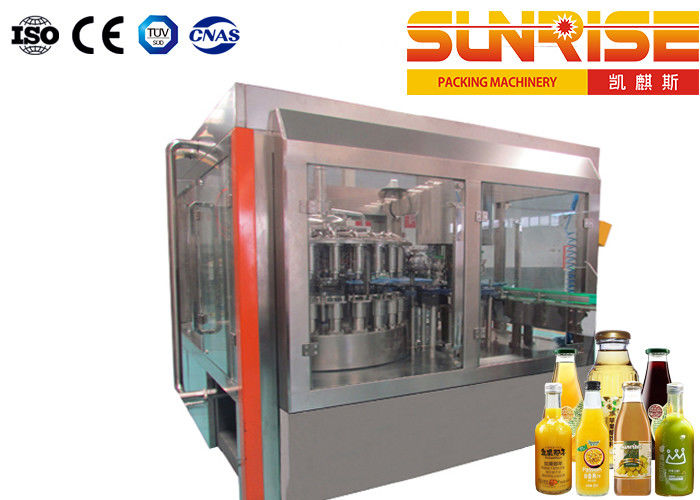

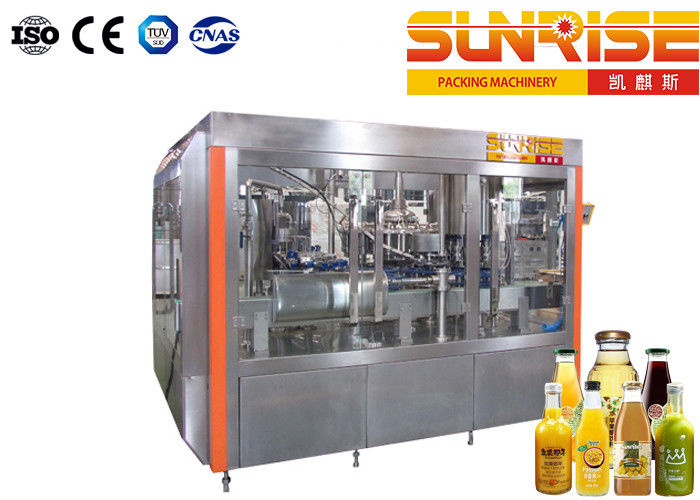

3000BPH Glass Bottle Soda Filling Machine

3000BPH Glass Bottle Soda Filling Machine

  • High Light

    3000BPH Glass Bottle Soda Filling Machine

    ,

    SUNRISE Glass Bottle Soda Filling Machine

  • Air Supply Pressure
    0.8MPa
  • Air Consumption
    0.8M3/min
  • Rinsing Water Pressure
    0.2-0.25 MPa
  • Consumption Of Rinsing Water
    3T/hr
  • Main Motor Power
    5.5KW
  • Installed Power
    9KW
  • Dimension
    4300×2930×2750mm (L×W×H)
  • Weight
    7800Kg
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

3000BPH Glass Bottle Soda Filling Machine

Small scale juice filling line machine carbonated beverage glass bottle filling machine

Description:



SUNRISE glass bottle filling machine is mainly designed for filling hot temperature liquid into glass bottle; For example juice, tea drinks etc which are made of concentrate juice. The final filling temperature will be around 85-90 degree centigrade; Once the thermal meter in juice filling machine is lower than the temperature, juice will be return to sterilizing machine again through return system.
Glass bottle juice filling machine is different from plastic bottle. It will be optional and suggested to apply 4 in 1 filling machine, one more washing system is adopted to warm up the glass bottle in advance.



Model capacity
KY14-12-4 3000BPH
KY18-18-6 5000~6000BPH
KY24-24-8 10000~12000BPH
KY32-32-10 12000~15000BPH
KY40-40-12 16000~18000BPH
KY50-50-15 21000~22000BPH
KY60-60-15 24000~26000BPH



Related equipment of the glass bottle filling line



1.3 in1 glass bottle washing filling and capping machine

3000BPH Glass Bottle Soda Filling Machine 0

Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable, Defective rate ≤0.2%.



Rinsing part:



Neck control with plastic snap on the gripper.

Water distributor combined with food grade rubber plate&SUS304 cover.

SUS304 water collecting tray spraying inject design, can completely washing the bottles.



Filling part:



The entire filler is gravity filling system.

High accurate SUS304L construction filling nozzle, make sure high accurate filling level. SUS304L liquid bowl, &pipeline system.



Capping part:



Place & capping system. Automatic caps arranging, feeding, feeding.

Electromagnetic capping heads, with burden discharge function.

All 304 stainless steel construction.



2.UHT system

3000BPH Glass Bottle Soda Filling Machine 1

It is a kind of sterilization technology for fresh milk treatment. It can be instantaneously sterilized at 135-140 C for 4-10 seconds without refrigeration below 10 C. Its shelf life can reach 1-6 months.



3.cooling tunnel

3000BPH Glass Bottle Soda Filling Machine 2

This machine is absorbed the abroad equipment technology and newly-designed, using circular cooling water in five cooling section to cool the fulfilled bottle step by step. During cooling, according to customer's requirement to adjust speed by inverter, which is suitable for cooling of all kinds of hot material.



4.OPP hot glue labeling machine

3000BPH Glass Bottle Soda Filling Machine 3

Continuously running new model labeling machine; it is mainly used for beverages, mineral water, food etc. Label material applies OPP, Pearl Membrane, composite paper etc.

This machine has features of running fast, high accuracy, stable performances, convenient operation, and beautiful outlook.



5.PE film shrink packaging machine

3000BPH Glass Bottle Soda Filling Machine 4

It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.



6.palletizer machinery

3000BPH Glass Bottle Soda Filling Machine 5

Palletizer is a machine which can arrange the cartons which has been loaded containers in a certain code on the tray. The stacking is automatic and launched many layers. Stacking complete, the layers will be push out. It is easy for the forklift to convey the layers to storage facility. This machine uses PLC+touch screen controls, intelligent operation management, simple, easy to master, can also greatly reduce the number of workers and labor intensity.
