Glass Bottle Fruit Juice Filling Machine Production Equipment
Description For The Glass Bottle Juice Filling Machine:
1). The raw water will be purified and sterilized after passing through the water treatment system, and will be stored in the purified water storage tank;
2). The juice will be prepared by the juice preparation system, the prepared juice is stored in the insulation tank (for heat preservation) temporarily;
3). Prepared juice will be pumped into the juice filling machine; At the same time, empty bottles pass through the rinsing, filling and capping 3-in-1 monoblock, the bottles will be rinsed, filled and capped.
4). Bottled water goes out from the water filling machine and will be transferred to the bottle over-turn sterilizing machine, the cap and the bottle mouth will be sterilized after passing through the sterilizing machine, then the bottles will be transferred to the bottle cooling machine;
5). The bottles are getting dried after passing through the blowing dryer, and the dried bottle will go to the labeling machine and PE film shrink wrapping machine;
6). The packed bottle water will come out from the PE film shrink wrapping machine.
All Types Of The Glass Bottle Juice Filling Machine:
Advantages of SUNRISE juice filling machine:
1). Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent.
2). Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
3). The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
4). Sanitary filling head system is of umbrella structure, high filling speed.
5). Perfect filling temperature control system.
6). Reflux tank system has the function of supplying the material automatically.
7). Perfect CIP system.
Related Equipment For The Glass Bottle Juice Filling Line:
1. Washing Filling And Capping Machine
-Stainless steel tube, bottle washing clamp isometric design:
Specially designed stainless steel bottle gripper does not contact the thread parts of the bottle neck, avoiding the second contamination. Bottle washing clamp isometric design. Not need exchange parts can work with 0.33-1.5L bottles.
-Filling valve < high filling and exact fluid level >:
High speed and mass flow filling valve ensure the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. filling valves, machine scutcheon etc. use laser printing.
-Gland device < bottle change is easier >:
Capping head have itself scale. Easier adjust and count.

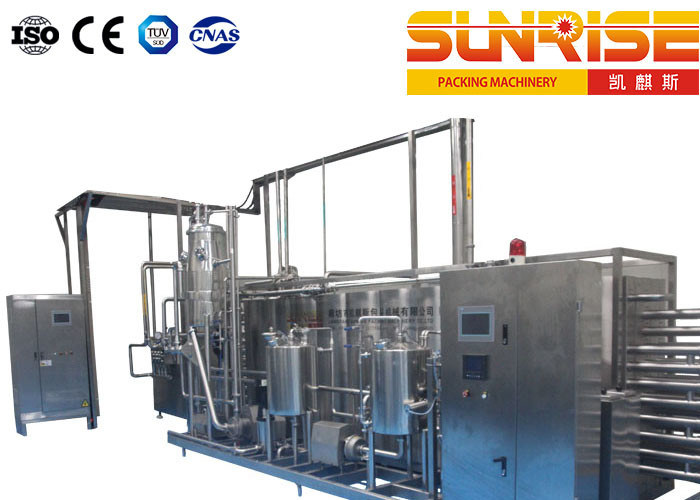

2. Beverage Pre-treatment System:
<1> The beverage processing system applies to beverage processing for hot filling line and CSD filling line.
<2> product's scope hot water system, sugar dissolving system ( simple syrup system ), concentrate system, blending system (final syrup system), CIP system, extraction system, kind of storage tank / valves / pipe / fittings, UHT system (plate / tubular type), and carbo-cooler / mixer (manual / automatic).
3. Tube UHT Sterilizer
The tube(pipe) sterilize machine can take hot process on the liquid foods and beverage.
4. Bottle Inverse Sterilizer Machine
It is mainly used in sterilizing glass or PET bottle mouth and inside surface of caps. in which haven't been disinfected by thermal tea, fruit juice which having been filled in glass or PET bottle.
5. Continuous Spraying Sterilizer
It adopts warm water to preheat, sterilize with recycling hot water, recycling warm water to pre-cool, and cooling water to cool; It is with the advantage of sterilizing temperature automatic control, and adjustable sterilizing time.
6. Carton Packing Machine
Specially Gripping design for carton packing for beer, beverage, bottled water, medicament, food etc bottle(cans)production line.
