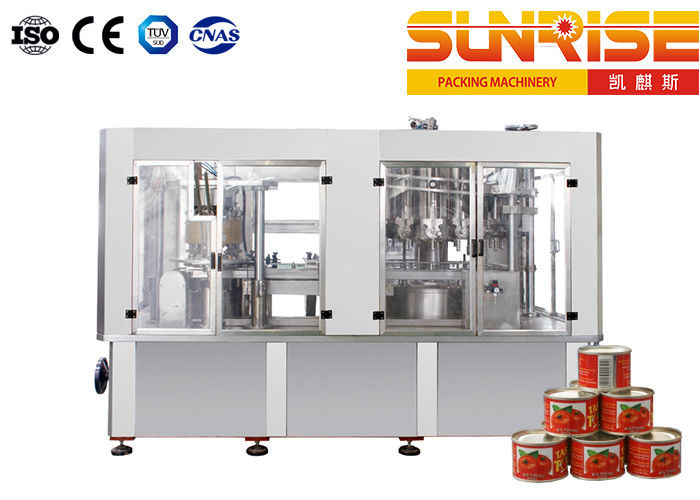

Canned tomato sauce production line automatic tin can creamy paste sauce packing machine

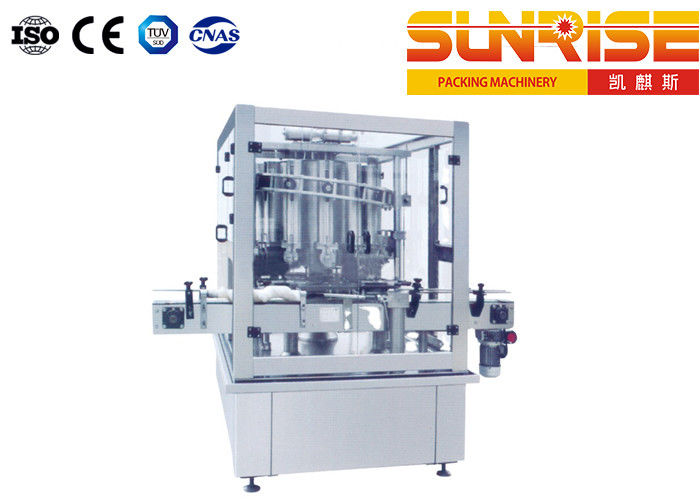

Product description of sauce and jam filling machines:
Series full automatic sauce and jam filling machines are the full automatic control system machines. It is specially designed for bottles/jars/cans/buckets filling of different products like tomato ketchup, barbecue sauce, seasoning sauce, thick paste and viscosity liquid, fruit pulp with granules, chili sauce, salad, fruit jam, honey, syrup, pepper sauce, mayonnaise etc in food, cosmetic, chemical industries.
Parameter of sauce and jam filling production line | |||
Weight | 4000kg | Dimensions | 2800*1600*1900mm(L*W*H) |
Voltage | 380V 220V other voltages can be customized | Power | 5.5KW |
Can height | 50-160mm | Filling head | 12 |
Filling accuracy | ±1% | Capacity | 80-200CPM |
Filling products | chili sauce, ketchup, fruit jam, salad, mayonnaise, pepper sauce, honey, syrup, fruit pulp, peanut butter etc | Filling volume | 70-850g |
Air consumption | 0.6m³/h | Air pressure | 0.6-0.8Mpa |
Main features of sauce and jam filling machines:
1.Series sauce and jam filling machines are specially made for bottles/jars/cans/buckets drums filling of different products like tomato ketchup, barbecue sauce, seasoning sauce, thick paste and viscosity liquid, fruit pulp with granules, chili sauce, salad, fruit jam, honey, syrup, pepper sauce, mayonnaise etc. in food, cosmetic, chemical industries.
2.The filling machines can be combined with bottle unscrambler machine, filling machine, capping machine, labeling machine, ink coding machine and packaging as a whole production line, each machine can be added as an option and combine freely.
3.The whole filling machine is a full automatic system, PLC control, 7 inch touch screen operator, Siemens, Schneider, Airtac, Omron world famous electric and pneumatic components.
4.All the machines are made of good quality 304/316 stainless steel and alloy aluminum. If for corrosive products, anti-corrosion machines by PVC PP material can be customized.
5.Filling volumes can be adjusted easily in the touch screen. We use quick and fast joints for building the machines which is easy for dismantling the machines and maintenance, and convenient for cleaning.
6.The machines are with automatic liquid level control system for feeding, which is very high automation.
7.The filling nozzles are specially made for anti-drips with years of experience which prevent the products dripping on the bottles while filling.
8.Filling nozzles are customized depends on your capacity required. 2nozzles,4nozzles,6nozzles,8nozzles,10nozzles are available.
9. Piston volumetric dosing with high accuracy.
