X-ray Foreign Matter Inspection Systems

X-ray Foreign Matter Inspection Systems

  • High Light

    foreign matter x ray inspection systems


    90m/Min X Ray Inspection Systems


    foreign matter x ray inspection machine

  • Detection Width:
  • Detection Height:
  • Belt Speed:
  • X-ray Generator:
    Based On Actual Needs
  • X Ray Measurement
  • Display Mode
    15-inch Touch Screen
  • X-ray Detectors
  • Data Interface
    LAN Port, USB Port
  • Applicable Industries
    Food, Beverage
  • Place of Origin
    Jiangsu, China
  • Brand Name
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

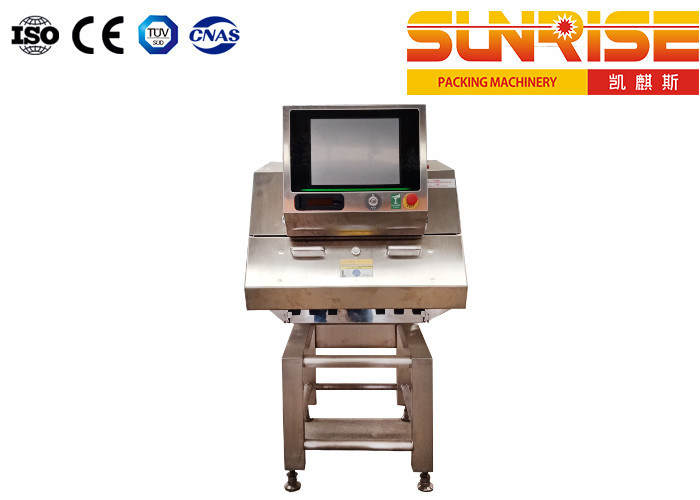

X-ray Foreign Matter Inspection Systems

Foreign Matter X Ray Inspection Systems 90m/Min Belt Speed


Product Features:


1.Powerful self-developed software, with shielding, defect detection, weight detection, foreign body detection and other functions;

2.Excellent product adaptability, up to ten levels of image processing technology;

3.Excellent operability, its own product self-learning function, automatic saving test pictures can be exported by a key;

4.4Good environmental adaptability, working environment temperature can reach

-10°C~40°C/humidity < 90%, product channel protection grade IP65, the whole machine structure is completely sealed, waterproof and dustproof effect is good;

5.Perfect and reliable safety protection, X-ray leakage to meet the American FDA standards, European CE standards, ≤ 1μSV /h;

6.Transmission belt can be quickly disassembled, convenient cleaning and maintenance;

7.High specifications of hardware configuration: equipment parts are imported from the industry brand, mature and reliable, to ensure the performance and service life of the whole machine.


Technical Parameters:


Detection width: 600mm
Detection height: 300mm
Detection sensitivity: SUS Ballφ0.3mm,Ceramic/Glass Ballφ1.0mm
Belt speed: 10-90m/min
X-ray generator:  based on actual needs
X-ray detectors: 0.4/0.8
X ray measurement: ≤μSv/h
Display mode:  15-inch touch screen
Data interface:  LAN port, USB port
Working environment:  T:-10~40℃/humidity:<90%
Alarm:  sound-light alarm
Voltage: AC220V,50/60Hz
Water proof grade:  IP65
Material:  SUS304




Lower Energy Consumption And Less Space Demand


The new slimming design compresses 50% of the entire machine space.

Low energy consumption is achieved by using low energy generator and all-in-one PC.


Wider and Better Inspection Performance


The X-ray foreign matter inspection system inherits our technical advantages. Except for metal, hard impurities such as glass, stone, bones, etc. can also be detected. It is not affected by the packaging, temperature and humidity of the product! The best inspection sensitivity(without product) reaches: SUS 0.5 mm, SUS Wire 0.3*2 mm, Ceramic/Glass 1.0 mm;


Detection Function:


Metal , glass, stone, bones, etc.


Applicable Industries:


Food, beverage,wine, beer, chemical, pharmaceutical,cosmetics and other industries.
