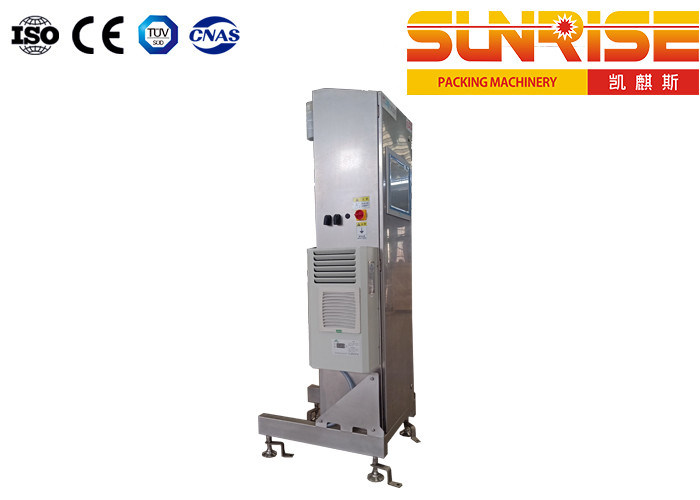

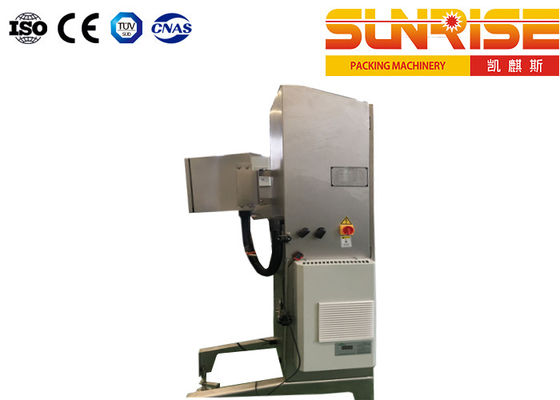

Single Phase Code And Data Inspector Non Contact Type

Single Phase Code And Data Inspector Non Contact Type

  • High Light

    Single Phase Code And Data Inspector

    ,

    Non Contact Code And Data Inspector

  • Temperature
    0ºC-45ºC
  • Whole Machine Power
    0.5KW
  • External Power Supply
    AC220V/single Phase
  • External Gas Source Flow
    > 500L/min
  • Maximum Speed
    1500 CPM
  • External Gas Source:
    >0.5Mpa;
  • Air Consumption
    0.01L/time
  • Altitude
    < 3000 M
  • Outline Dimension
    827*709*1928mm(L*W*H)
  • Place of Origin
    Jiangsu, China
  • Brand Name
    T-LINE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    TJGDMJ15
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

Single Phase Code And Data Inspector Non Contact Type

Single Phase Code And Data Inspector Non Contact Type



Product Overview:



    Code and data inspector adopts contactless on-line detection mode, and the detection principle is based on the world leading intelligent vision technology, which is close to the judgment ability of human beings. The system can realize different functions according to different detection requirements.



    The product is specially applied to the defect detection of the spray code, and the intelligent learning tool and the simple operation setting are adopted, and only qualified products are set, and the machine can automatically judge the defective products. Anyone can master the setting and application at the fastest speed. The code detection machine is developed on the basis of my company's first generation, and the second generation machine is mainly used to identify and test the single character. The missing of a single character and character integrity detection can be achieved.



Inspection Principle And Layout:



    Using contactless online detection method, the detection principle is based on the world leading level of intelligent vision technology. Using high precision camera, when the detected product passes under the detector, it can be quickly identified whether the spray code above the detected product is consistent with the correct spray code stored in advance, and whether the spray code is qualified or not can be judged by software processing, and then the unqualified cans(bottles) can be removed from the cans flow according to the judgment results.



    The detection system mainly comprises a human-computer interface, a code spraying detection unit and a rejector, wherein the human-machine interface comprises a touch screen, a tower lamp and an operation interface; the rejector is an executing mechanism of the system and is used for shunting or eliminating the unqualified cans.



    Layout:



    Schematic Diagram: install in the single row conveyor chain after the inkjet printer or laser printer.



Single Phase Code And Data Inspector Non Contact Type 0





Technical Parameters And Features:



Outline Dimension 827*709*1928mm(L*W*H)
Temperature 0ºC-45ºC
Whole Machine Power 0.5KW
External Power Supply AC220V/single phase
External gas source flow > 500L/min
Maximum Speed 1500 CPM
External Gas Source: >0.5Mpa;
Air Consumption 0.01L/time
Altitude < 3000 m
External gas source interface Outer diameter φ 10 trachea





Configuration Feature:



    Non-contact type inspecting

    Chinese and English dual language menu

    Color human-computer interface

    IP65 cabinet

    Reliable high-speed reject

    Alarm for continuous rejecting

    Ten product types of storage

    Save 10 kinds of rejecting data

    Digital signal treatment

    Accurate beat timer encoder

    Net remote control (optional)





Accessories Brand:



Screen NODKA,12 inch touch screen
CCD Camera Germany Baumer
Lens Japan Computar
Photo electricity JAPAN Omron
IPC NODKA
Light Source T-Line
Light Source Controller T-Line
Industrial Air Conditioning: Australia RACK;
Air Cylinder: Japan SMC
Solenoid Valve: America MAC
Signal Light, Circuit Breaker Schneider
Encoder Switzerland ELCO
Others Misumi,Phoenix



Detection Function:



    No code, lack of letters or figures(missing 15%),code huddled, code position offset(some letters or figure spray on edge).



Applicable Containers:



    All kinds of tin cans and aluminum cans with bottom printing code; All kinds of bottles with cap printing code.
