Pressure and leak detection in cans, glass
Pressure and leak detection in cans and glass principle:

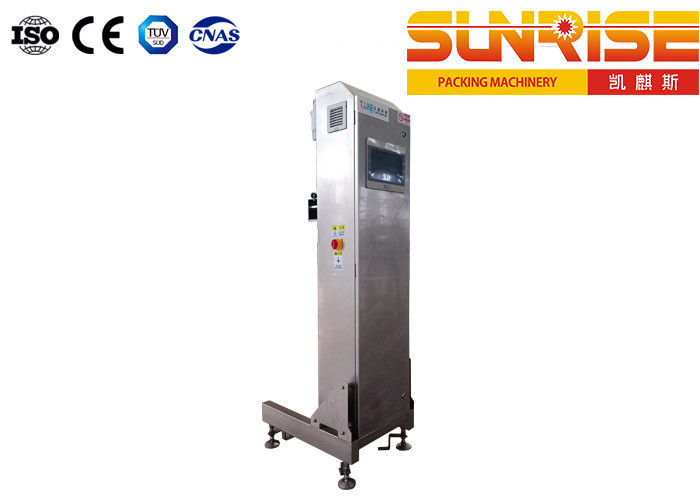

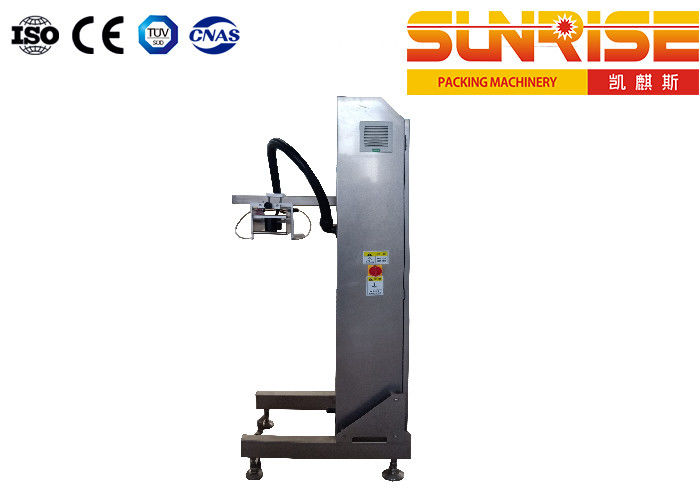

Pressure and leak detection in cans and glass is a fully automatic multifunctional detection system equipment with a detection speed of up to 1500 cans(bottles) per minute. It adopts contactless on-line detection method and its detection principle is based on the world leading acoustic technology and scanning technology.
It adopts acoustics technology, testing quality defects from low pressure or less vacuum of the iron sealing container. When the container passes through the detecting probe, the probe emits a high-energy electromagnetic wave non-contact shocking container lid and the lid impacts sound. Sound with pressure of the container has the certain proportion relationship. Through acoustics technology, the machine can judge whether the container has the quality defects by sound. The unique sound analysis method can achieve high accuracy and continuity.
Scanning technique is used to detect the deformation of the lid of the iron cover container, and the quality defect of the container is judged by the deformation degree of the lid. When the container passes through the curved surface scanning probe, the probe continuously detects the distance between the probe and the lid and outputs the proportional analog voltage. The analog voltage passes through the data processing system to produce the shape quality value of the lid. The unique data analysis method can achieve high accuracy and continuity.
Control platform: Vacuum and pressure inspector integrates the latest digital signal processing technology, all Chinese menu, color touch screen operation simplifies man-machine communication. The display can display all the parameter settings and adjustments of the product, and can store the parameters of 10 different products. Other functions of the system include independent programmable batting output for product defect percussion. Independent programmable modules can make the following settings: hit container, retain container, encoder, hit indicator, alarm and batter status output.
Pressure and leak detection in cans and glass technical parameters and characteristics:
Outline Dimension |
654*756*1960mm |
Body Material |
SUS304 |
Whole Machine Power |
0.5KW |
External Power Supply |
AC220V/single phase |
Supply Frequency |
50/60HZ |
Maximum Speed |
1500CPM |
External Gas Source: |
>0.5Mpa; |
Air Consumption |
≈0.01L/time |
Pressure and leak detection in cans and glass configuration feature:
Non-contact type inspecting
Chinese and English dual language menu
Color human-computer interface
IP65 cabinet
Reliable high-speed reject
Alarm for continuous rejecting
Ten product types of storage
Save 10 kinds of rejecting data
Digital signal treatment
Accurate beat timer encoder
Net remote control (option)
Pressure and leak detection in cans and glass detecting function:
Detect the degree of vacuum and pressure inside the containers to check whether lack of vacuum and pressure, no-lid, expansion-can, double-lid, fall-can, full-can, reverse-can, large-collapse can, and so on.
Pressure and leak detection in cans and glass applicable containers:
Tin cans or aluminum cans, hot filling glass bottles with iron caps.
