72000BPH Aluminum Film Sealing Inspector For PE Bottles

72000BPH Aluminum Film Sealing Inspector For PE Bottles

  • High Light

    V Light Film Sealing Inspector


    PE Bottles Film Sealing Inspector


    Aluminum Film Sealing Inspector

  • Power
  • Temperature
  • MAX. Speed
  • Power Source
    AC220/Single Phase
  • Flow Of Air Source
  • Air Source
  • Altitude
    <3000 M
  • Air Consumption Of Rejecter
  • Place of Origin
    Jiangsu, China
  • Brand Name
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

72000BPH Aluminum Film Sealing Inspector For PE Bottles

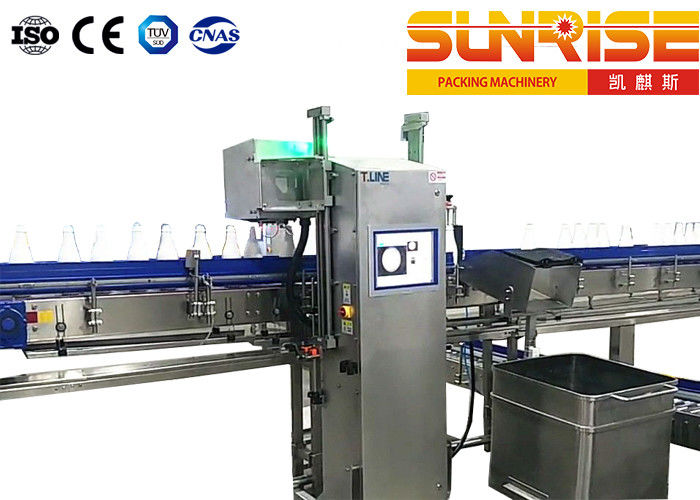

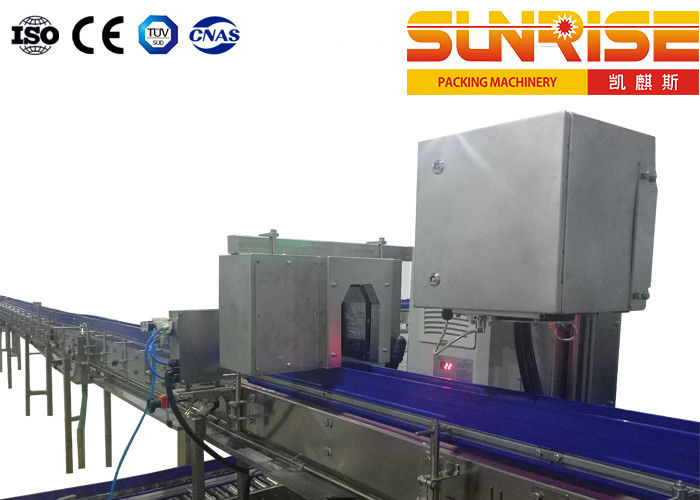

Aluminum film sealing inspector

Equipment introduction:


    Aluminum film sealing inspector adopts intelligent visual technology, through high-speed cameras of two detection units HD video on bottle vertical and horizontal direction. The center controller analysis and process images. First, it will take pictures above the bottle, to judge whether it is qualified through aluminum film planeness and integrality. Second, it will take pictures side of the bottle, to judge whether it is leakage through the features of side pictures. So this equipment can ensure the quality of products through the above two detections.


Technical parameters:



Temperature:  0ºC-45ºC
MAX. speed:  72000BPH
Power source:  AC220/Single phase
Flow of air source:  >500L/min
Air source:  >0.6Mpa
Altitude:  <3000 M
Air consumption of rejecter: ≈0.01L/action





    Non-contact type inspecting

    Chinese and English dual language menu

    Color human-computer interface


    Alarm for continuous rejecting

    Save 10 kinds of rejecting data

    Digital signal treatment

    Accurate beat timer encoder

    Net remote control (optional)


Fitting brand


    1.Industrial air conditioning: Leizig(Australia)

    2.CCD Camera: BAUMER(Germany)

    3.Camera lens: Computar(Japan)

    4.Air cylinder: SMC(Japan)

    5.Photoelectricity: Omron (Japan)

    6.Signal lamp/breaker: Schneider

    7.Electromagnetic valve: MAC (American)

    8.Light source controller: V-Light


Detecting function:


    Detection function: aluminum film not sealing,slight leakage,bottle body leakage. The machine can automatically and non-contact detect the aluminum film sealing quality online testing and accurately reject the non-qualified products.


Applicable containers:


    PE bottles with aluminum film sealing above 1L (need high temperature sterilization).
