500ml Bottle Combi Block Water Filling Line 36000B/H

500ml Bottle Combi Block Water Filling Line 36000B/H

  • High Light

    Combi Block Water Filling Line

    ,

    500ml bottle Water Filling Line

    ,

    36000B/H Water Filling Line

  • Device Model
    KSCGX 22-72-20
  • Number Of Bottle Cavities
    22
  • Number Of Filling Heads
    72
  • Number Of Capping Heads
    20
  • Production Capacity
    36000B/H (500ml)
  • Applicable Bottle
    PET Bottle, Plastic Bottle
  • Bottle Height
    180-330mm
  • Applicable Caps
    Plastic Screw Cap
  • Total Power
    390 Kw
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    KSCGX 22-72-20
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

500ml Bottle Combi Block Water Filling Line 36000B/H

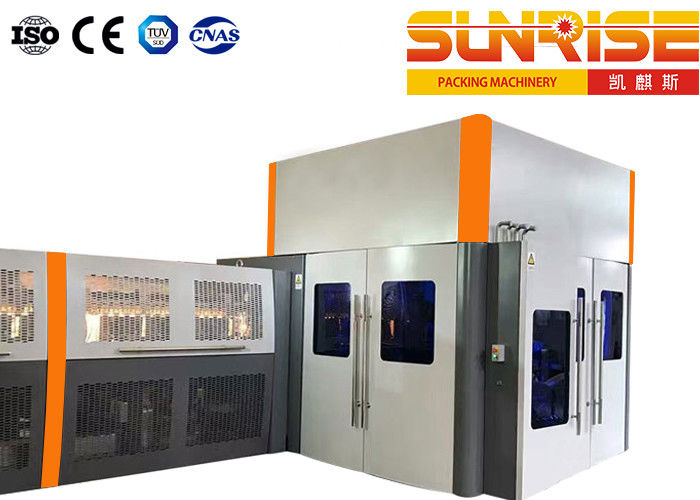

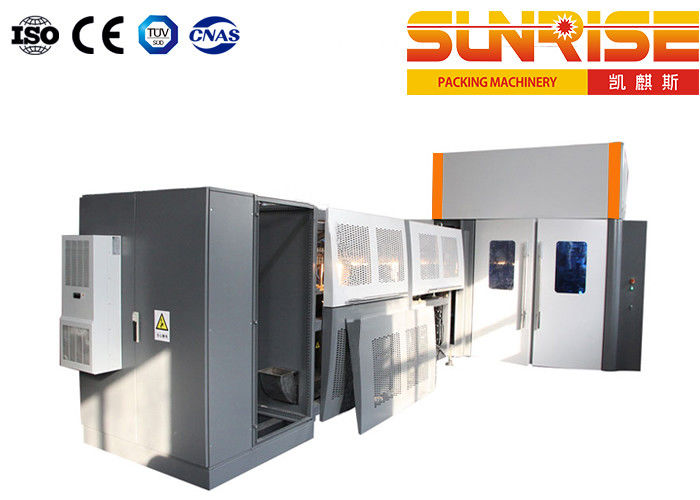

High Speed Blowing-filling-capping Combi Block for Bottled Water Gravity Filling



High Speed Blowing-filling-capping Combi Block for Bottled Water Gravity Filling Summary:



SUNRISE High Speed Blowing-filling-capping Combi Block for Bottled Water Gravity Filling is the ideal solution for manufacturing, filling and capping PET containers of different sizes and shapes, from the simplest to the most complex and innovative. Combining stretch-blow moulding, filling and capping functions into a single machine offers several advantages, since the rinser and air conveyors between the stretch-blow moulder and the filler are not needed, the risks of product contamination are minimized and the causes of the line inefficiency are eliminated.



High Speed Blowing-filling-capping Combi Block for Bottled Water Gravity Filling main technical parameters:



 Device model:  KSCGX 22-72-20
 Number of bottle cavities:  22
 Number of filling heads:  72
 Number of capping heads:  20
 Production capacity:  36000 bottles/hour (500ml PET bottles)
 Applicable bottle type:  H=180-330mm  Φ60-110mm
 Installed power:  390KW
 Dimensions:  16400*9200*3840 mm (L*W*H)
 Whole machine quality:  25000kg
 Air source:  0.8MPa



High Speed Blowing-filling-capping Combi Block for Bottled Water Gravity Filling can be used in the bottling lines of the following products:



1.Water Treatment Machine

Used for pure water, mineral water and other bottled water,water for food and beverage production.

It is mainly composed of the following equipment: pre-treatment system (water tank,multi-medium filter, active carbon filter, ion exchanger, millipore filter), membrane separation system (ultrafilter, nanometer filter, RO system), electrodialysis device, sterilization system (UV device, ozone device) ,product water tank and so on.

500ml Bottle Combi Block Water Filling Line 36000B/H 0
500ml Bottle Combi Block Water Filling Line 36000B/H 1

2.Blow Moulding Machine

Blow moulding machine 1,000-24,000bph, and 0.25-2L PET bottles are available;

It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle, etc;

The man-machine interface is highly automated and easy to operate. The compact machine occupies a smaller area;

The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes

3. Bottle Unscrambler

KY series bottle unscrambler machine is the latest generation of automatic intelligent bottle unscrambler machine. The machine adopts intelligent fully enclosed visual design, photoelectric detection and dual anti-clogging bottle functions, and is suitable for many types of bottles. The size of the whole machine is made of high-quality stainless steel, which is strong and durable. The automatic adjustment bottle machine is a supporting equipment for soft drink filling. It is used to transport messy PET bottles to the production line neatly to improve production efficiency.

500ml Bottle Combi Block Water Filling Line 36000B/H 2
500ml Bottle Combi Block Water Filling Line 36000B/H 3

4. Air Conveyor System

The air conveying line is a device that uses wind to convey empty PET bottles. It is widely used in the beverage industry to convey empty PET bottles. It realizes that the empty bottles produced by the bottle blowing machine are directly transported to the filling machine for disinfection, cleaning, filling and sealing, which reduces the turnover pollution of the empty bottles during the conveying process and saves production costs.

5.Water Filling Machine

Water filling line production capacity is usual in 24000bph, 500ML PET bottles are available;

Water filling line can apply to fill natural spring water, purified water, carbonated water, flavored water into PET bottle by changing few spare parts;

Automatic water filling machine adopts rinsing, filling and capping 3-in-1 technology, PLC control, touch screen. It is mainly made of SUS304/ SUS316;

Pivotal electrical parts adopt Schneider, SICK, and SIEMENS for water filling production line;

The whole production filling line accuracy is ±3mm;

We can provide complete beverage ideal solution - blowing, filling and packing for PET bottle.

500ml Bottle Combi Block Water Filling Line 36000B/H 4
500ml Bottle Combi Block Water Filling Line 36000B/H 5

6. Water Blowing Machine

1. The whole is made of SUS304 stainless steel, equipped with a special protective cover, and the product design is beautiful and generous.

2. Adopt the special air knife imported from Germany with SUS304 material, the width of the air outlet is 1mm, the adjustable range is 0.3mm-3mm, and the effective length is up to 1200mm, which can adapt to the drying requirements of the tank in different environments.

7. Inkjet Printer

1. The number of coding lines is up to 5, and the speed is up to 293 meters/minute (960 feet/minute).

2. Running time: 12000 hours

500ml Bottle Combi Block Water Filling Line 36000B/H 6
500ml Bottle Combi Block Water Filling Line 36000B/H 7

8. Capping Liquid Level Inkjet Code Detection Machine

The capping liquid level inkjet code detection equipment is composed of a detection unit, a human-machine interface, a control unit, and a rejection mechanism. It is suitable for the capping, liquid level, and inkjet detection of high-speed PET bottle production lines. Rich experience can do: detection of no cover, high cover, crooked cover, broken bridge, ring defect, distortion, miscellaneous cover, liquid level detection, etc.

9.Shrink Sleeve Label Machine

The mainly used for container labeling cylindrical, square or other special shapes of detergents, beverages, mineral water, food, etc.

Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.

High speed, high accuracy, stable performance.

Easy to operate and look elegant appearance.

500ml Bottle Combi Block Water Filling Line 36000B/H 8
500ml Bottle Combi Block Water Filling Line 36000B/H 9

10.Auto Film Wrap Packaging Machine

1.Small footprint and small energy consumption

2.Low operating cost.

3.High efficiency and stability, simple operation.

4.PLC control, quality assurance.

11.Auto Carton Packaging Machine

1.Low operating cost.

2.High efficiency and stability, simple operation.

3.PLC control, quality assurance.

500ml Bottle Combi Block Water Filling Line 36000B/H 10
500ml Bottle Combi Block Water Filling Line 36000B/H 11

12.Automatic Palletizer Machine

Low level palletizing, advanced payer-type palletizing design, advanced configuration, running stably and low power consumption.

PLC control system and convert for speed control insure that cases transfer, array, palletizing, pallet unloading, solid pallet pushing out are automatically.

Machine with high security and powerful diagnosis function alarm and guard to insure personal safety.

Easily to adjust for palletizing format by touch screen.no need o change parts for a malfunction to finish palletizing.

Apply to carton and film packing products palletizing.

13. Automatic Film Winding Machine

1. The equipment automatically senses, conveys, and winds goods, and completes automatic film loading, film breaking and film blowing operations.

2. Digital display man-machine interface, input the corresponding work instructions according to the wrapping needs. The number of winding layers, the number of top turns, the number of bottom turns, and the top-over time can be set.
