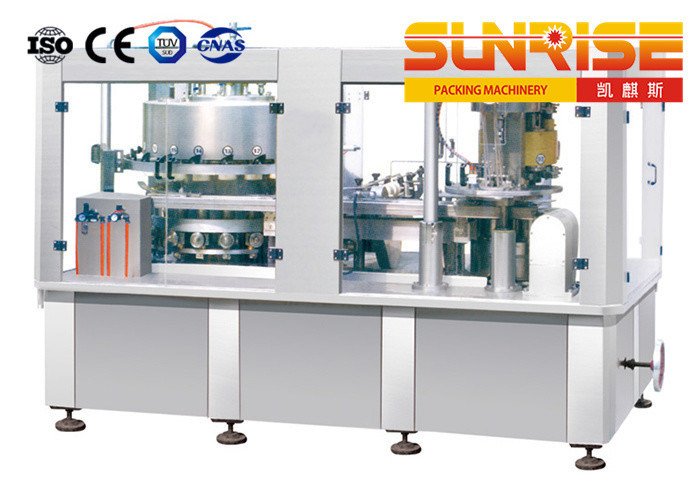

KQS18-4 Filling And Sealing Machine
KYGF18-4 filling and sealing machine is a fully automatic filling and sealing equipment developed by the company on the basis of digesting and absorbing domestic and foreign (non-steam) can filling and sealing machines. The principle of atmospheric filling is adopted. When the empty can enters the lifting tray via the dial, the filling valve and the empty can are centered, the empty can is lifted and sealed, and the valve port of the filling valve is automatically opened. At the same time as the filling liquid level stop filling when the valve's return pipe port is blocked. The filled can is sent to the head of the sealing machine through the hook chain, and the lid is sent to the mouth of the can through the cap feeder and the pressure head. When the can holding mechanism is raised, the pressure head presses the can mouth, and the sealing wheel is pre-sealed and then after the can is sealed, the can is pushed out by the head of the capping mechanism, and then enters into the can delivery.
When the production is over, the filling machine can realize one-button automatic CIP cleaning, which is the first in China.
|1. Type :||KQS18-4|
|2. Number of sealed cans:||4|
|3. Number of filling heads:||18|
|4. Production capacity:||80～250 cans/minute|
|5. Applicable can height:||70～180mm|
|6. Applicable can diameter:||50～90mm|
|7. Work rate:||7.5kw|
