Sunrise Intelligent Equipment Co., Ltd 86-18851376363

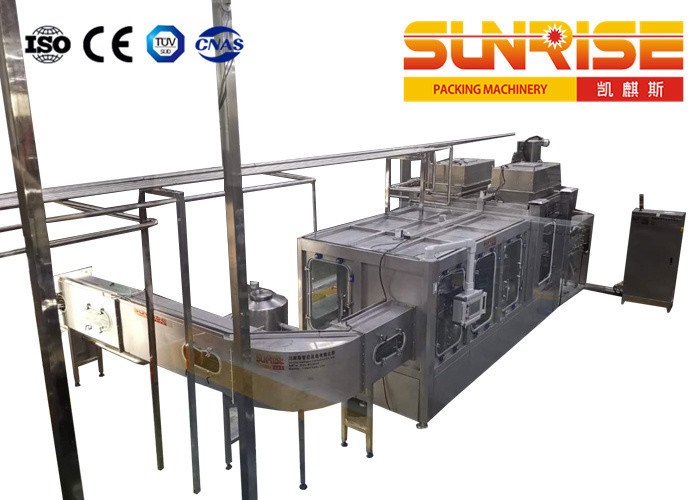

1500ML Bottle Ultra Clean Filling Machine 36000 Bottles/Hour

1500ML Bottle Ultra Clean Filling Machine 36000 Bottles/Hour

  • High Light

    1500ML Bottle Ultra Clean Filling Machine


    SOP Systems Ultra Clean Filling Machine


    36000 Bottles/Hour Ultra Clean Filling Machine

  • Application
    PET Bottle Tea, Fruit Juice, Functional Beverage, Water And Other Products.
  • Capacity
  • Bottle Type
  • Diameter
  • Height
  • Hot Filling
  • Medium Temperature Filling
  • Low Temperature Filling
    Below 35℃
  • Place of Origin
    Jiangsu, China
  • Brand Name
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

1500ML Bottle Ultra Clean Filling Machine 36000 Bottles/Hour

PET Bottle Juice Super Clean Five-In-One Filling Machine


1. Equipment overview of PET bottle juice ultra-clean five-in-one filling machine


          The PET bottle juice super clean five-in-one filling machine is divided into super clean hot filling, super clean medium temperature filling, and super clean low temperature filling. SUNRISE PET bottle juice ultra-clean five-in-one filling machine integrates two disinfectant sprays, sterile water sprays, filling and capping into one. The internal cleaning and disinfection of the filling machine mainly adopts COP and SOP systems, and the cleaning and disinfection of the material pipeline mainly adopts CIP and SIP systems to ensure the nutrition and taste of the product to the greatest extent. The ultra-clean filling combination machine is mainly used in PET bottles of tea, juice, functional beverages, water and other products.


2. Features of PET bottle juice ultra-clean five-in-one filling machine



 PET bottle tea, juice, energy drinks, water and other   products

 Capacity range:

 6000 bottles/hour -36000 bottles/hour

 Applicable bottle type:



 Φ50 ~ 95mm


 140 ~ 320mm

 Hot Filling:


 Medium temperature   filling:


 Low temperature filling:   below 35℃


1500ML Bottle Ultra Clean Filling Machine 36000 Bottles/Hour 0


3. Features of PET bottle juice ultra-clean five-in-one filling machine


Washing station


     The bottle washing station can realize high-pressure washing of the inside of the bottle, the outer wall of the bottle and the mouth of the bottle. The bottle washing area has a lower water receiving tray and an upper water baffle plate. The bottle washing area is equipped with a stainless steel protective cover to prevent splashing of the bottle washing water during rinsing. The rinsing water inlet is equipped with a pressure adjustment device, which can adjust the rinsing pressure and control the water flow according to the requirements of the empty bottle. Effectively guarantee the effect of rinsing and save the consumption of rinsing water. A bottle-rinsing device is installed at the bottle-rinsing connection to effectively disinfect and clean the bottle neck.


Filling station


     The filling station adopts upper and lower dispensing cylinders. During the filling process, the air in the bottle returns to the lower dispensing cylinder without contact with the outside world, which is more beneficial to ensure the sterility of the product than other forms of filling. Learn from foreign advanced technology and independently develop it to meet the requirements of high-speed filling. It adopts a quick-release structure, and the valve body is cleaned easily and quickly, with self-cleaning function.


Sealing station


     The capping machine introduces the most advanced international sealing technology to meet the needs of high-speed sealing. The reliable and accurate torque adjustment ensures the safety of each bottle. The thread cleaning of the bottle mouth before sealing will avoid the moldy of the remaining liquid in the bottle mouth in the storage.



Q:Are you the manufacturer or dealer?

A:We are the manufacturer.

Q:Your company's product quality?

A:Our company is very strict with product quality, passed the ISO9001 quality certification. To the quality strives for the survival, to the credibility of development, the holy spirit.

Q:Could you calculate the shipping cost for me?

A:Yes,we are honored to do that for you!Before the freight,please let us know which seaport or airport near your place.

Q:How long is your delivery date?

A:If there is stock,the delivery time is arround 1 week after we get payment.If need to be produced,If the siginal machine need 10Days,the whole production line will need 30- 50 days after we get the deposit.

Q:Do you have an good after service?

Yes our engineers available service overseas.
