PET Bottle Ultra Clean Filling Machine 12000 Bottles / Hour

PET Bottle Ultra Clean Filling Machine 12000 Bottles / Hour

  • High Light

    12000 Bottles / Hour Ultra Clean Filling Machine


    PET Bottle Ultra Clean Filling Machine


    12000 Bottles / Hour pet bottle filling machine

  • Filling Head
  • Capping Head
  • Volume
  • Capacity
  • Bottle Type
    H=180-340mm, Φ50-106mm
  • Power Supply
  • Air Source
  • Whole Machine Quality
  • Place of Origin
    Jiangsu, China
  • Brand Name
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    90-120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

PET Bottle Ultra Clean Filling Machine 12000 Bottles / Hour

Ultra-Clean Filling/Machine Combination
1. Brief description
      Ultra-clean filling/machine combination :Including super clean hot filling, super clean medium temperature filling, super clean low temperature filling. The filling machine integrates two disinfectant sprays, aseptic water sprays, filling and capping into one. The internal cleaning and disinfection of the filling machine mainly adopts COP and SOP systems, and the cleaning and disinfection of material pipelines mainly adopts CIP and SIP systems to maximize the nutrition and taste of the product.
2. Features:
1) Mainly suitable for PET bottle tea, fruit juice, functional beverage, water and other products;
2) Capacity range: 12,000 bottles/hour;
3) Applicable bottle type 500ml-2000ml, diameter φ50~106mm; height 180~340mm;
4) Product filling temperature: 85-92℃ for hot filling, 68-72℃ for medium temperature filling, and below 35℃ for low temperature filling.

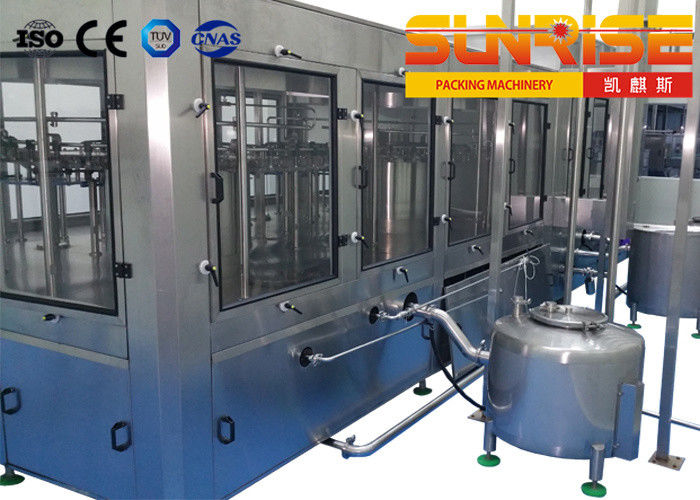

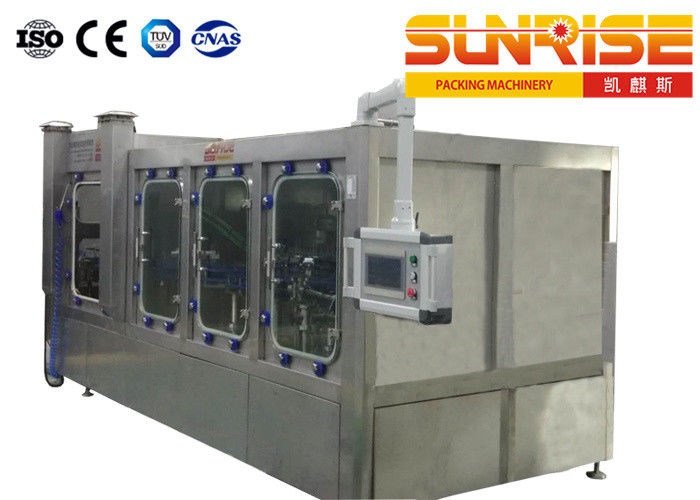

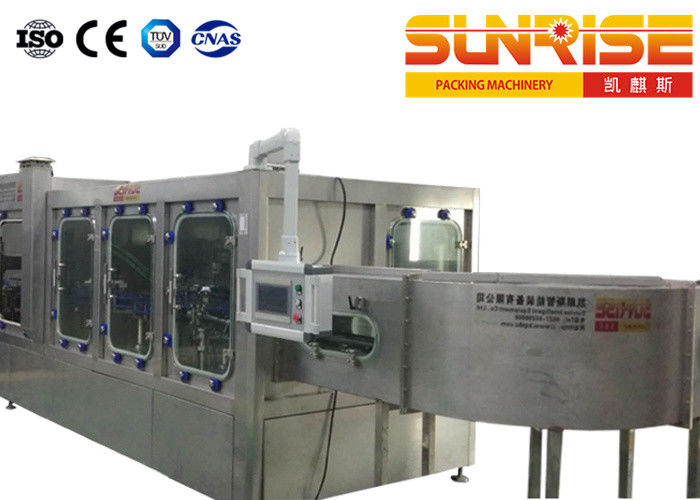

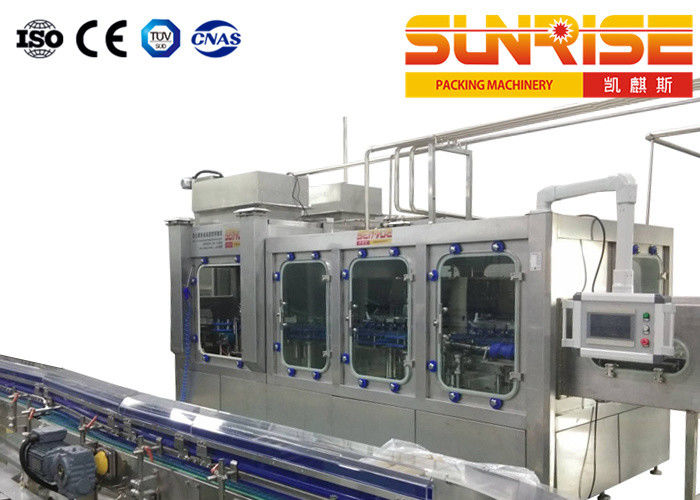

PET Bottle Ultra Clean Filling Machine 12000 Bottles / Hour 0
PET Bottle Ultra Clean Filling Machine 12000 Bottles / Hour 1

3. The process for Ultraclean filling is as follows:


1) Chemical sterilisation of the bottles

2) Bottle sterile rinsing using Auxonia and combined with sterile water rinsing of the Auxonia

3) Ultra Clean Sterile filling (non-contact valves), either by flow metres or by weight cells.

4) UV ray chemical sterilisation of the caps washing with sterile water before capping in clean room. the bottle closures
or caps can be sterilesd with steam in the chute or by an Auxonia spray.

5) Over pressure in the filling machine with sterile filtered air is vital to ensure harmful bacteria are filtered out of the
air inside the filler. Air is first filtered via an HEPA filter and poumped at a light pressure inside the filter which is
enclosed in a full shell where air is filtered. the overpressure ensures that no contaminated air is let in the filling machine
during normal production.




Q:Are you the manufacturer or dealer?

A:We are the manufacturer.

Q:Your company's product quality?

A:Our company is very strict with product quality, passed the ISO9001 quality certification. To the quality strives for the survival, to the credibility of development, the holy spirit

Q:Could you calculate the shipping cost for me?

A:Yes,we are honored to do that for you!Before the freight,please let us know which seaport or airport near your place.

Q:How long is your delivery date?

A:If there is stock,the delivery time is arround 1 week after we get payment.If need to be produced,If the siginal machine need 10Days,the whole production line will need 30- 50 days after we get the deposit.

Q:Do you have an good after service?

A:Yes our engineers available service overseas.
