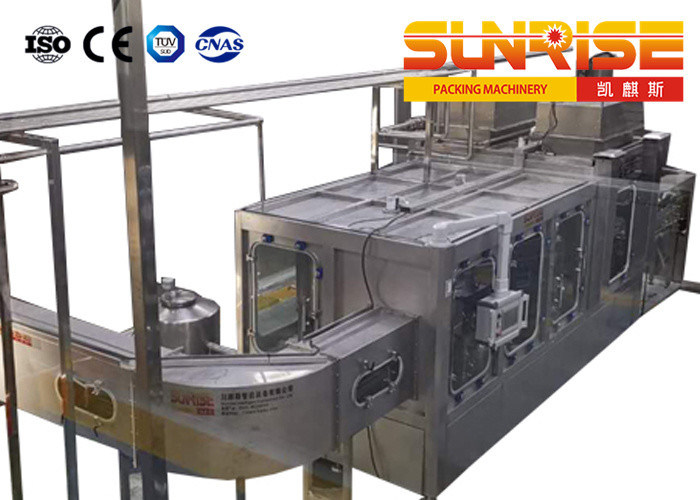

500ml Ultra Clean Filling Machine 12000BPH For PET Bottle

500ml Ultra Clean Filling Machine 12000BPH For PET Bottle

  • High Light

    500ml Bottle Ultra Clean Filling Machine

    ,

    12000BPH Ultra Clean Filling Machine

    ,

    12000BPH automatic bottle filler

  • Filling Head
    32
  • Capping Head
    10
  • Bottle Volume
    500ml
  • Production Capacity
    12000BPH
  • Bottle Size
    H=180-340mm, Φ50-106mm
  • Power Supply
    8kw
  • Air Source
    0.8MPa
  • Total Weight
    9000kg
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    KQSMF10A
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    90-120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

500ml Ultra Clean Filling Machine 12000BPH For PET Bottle

                                                              500ml PET Bottle Super Clean Filling Machine



1. Equipment overview of 500ml PET bottle ultra-clean five-in-one filling machine

        The 500ml PET bottle super clean filling machine is divided into super clean hot filling, super clean medium temperature filling, and super clean low temperature filling. Kaiqisi 500ML PET bottle ultra-clean five-in-one filling machine integrates two disinfectant sprays, aseptic water sprays, filling and capping into one. The internal cleaning and disinfection of the filling machine mainly adopts COP and SOP systems, and the cleaning and disinfection of the material pipeline mainly adopts CIP and SIP systems to ensure the nutrition and taste of the product to the greatest extent. The ultra-clean filling combination machine is mainly used in PET bottles of tea, juice, functional beverages, water and other products.

2. The main technical parameters of the 500ml PET bottle ultra-clean five-in-one filling machine


 Model No.:   KQSMF10A
 Number of disinfectant spray heads:   40
 Number of rinse heads :  40 (with sterile water)
 Number of filling heads:   32
 Number of capping heads:   10
 Bottle volume:   500ML
 Production capacity:   12000BPH
 Applicable bottle type:   H=180-340mm, Φ50-106mm
 Power supply:   8kw
 Dimensions:   6200×3000×3000 mm (length * width * height)
 Total Weight:   12000kg
 Air source:   0.8MPa


3. Structural features of 500ML PET bottle ultra-clean filling machine

Washing station


       The bottle washing station can realize high-pressure washing of the inside of the bottle, the outer wall of the bottle and the mouth of the bottle. The bottle washing area has a lower water receiving tray and an upper water baffle plate. The bottle washing area is equipped with a stainless steel protective cover to prevent splashing of the bottle washing water during rinsing. The rinsing water inlet is equipped with a pressure adjustment device, which can adjust the rinsing pressure and control the water flow according to the requirements of the empty bottle. Effectively guarantee the effect of rinsing and save the consumption of rinsing water. A bottle-rinsing device is installed at the bottle-rinsing connection to effectively disinfect and clean the bottle neck.

Filling station


       The filling station adopts upper and lower dispensing cylinders. During the filling process, the air in the bottle returns to the lower dispensing cylinder without contact with the outside world, which is more beneficial to ensure the sterility of the product than other forms of filling. Learn from foreign advanced technology and independently develop it to meet the requirements of high-speed filling. It adopts a quick-release structure, and the valve body is cleaned easily and quickly, with self-cleaning function.

Sealing station


       The capping machine introduces the most advanced international sealing technology to meet the needs of high-speed sealing. The reliable and accurate torque adjustment ensures the safety of each bottle. The thread cleaning of the bottle mouth before sealing will avoid the moldy of the remaining liquid in the bottle mouth in the storage.
