360 Degree Label Inspection Machine AC220V Single Phase

360 Degree Label Inspection Machine AC220V Single Phase

  • High Light

    360 degree label inspection machine

    ,

    AC220V Label Inspection Machine

  • Dimensions
    900*800*2600mm
  • Body Material
    SUS304;
  • Machine Power
    0.7KW;
  • External Power Supply
    AC220V/single Phase;
  • Power Frequency
    50/60HZ;
  • Maximum Speed
    1500 Ph/min;
  • External Air Source
    0.5Mpa;
  • Gas Consumption
    0.01L/time
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    TJBJ
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

360 Degree Label Inspection Machine AC220V Single Phase

TJBJ Type Label Inspection Machine



1. Equipment Overview


The label inspection machine adopts a professional image processing system, which can realize 360-degree inspection. The simple design of the bottle changing and lifting mechanism can quickly adapt to a variety of bottle types through simple manual adjustment. The compact inspection cabinet minimizes the equipment footprint. The detection operation status and fault conditions are all displayed on the man-machine interface. The detection unit can also be configured according to customer requirements.


2. Equipment Features And Layout:


Light source: LED surface light source with a lifespan of up to 30,000 hours. Using the background light method of illumination, the edge contour of the measured object can be clearly outlined; in the image, the marked part is black, and the unmarked part is white. "Black and white" images are easy to analyze and process.
Lens: Manual iris fixed-focus lens is adopted, the image on the CCD target surface is clearest by adjusting the "focus adjustment ring", and the brightness of the image is optimized by adjusting the "iris adjustment ring".
Camera: It adopts an area CCD analog camera with a resolution of 640*480 pixels, and the image acquisition speed can reach 80 frames/sec.
Layout diagram: After the sleeve/labeling machine, it is required to be on a single-segment chain of more than 1500mm, the relative gap of the bottle during operation is more than 2cm, the relative chain jitter of the installation position is small, and the guardrail is smooth.

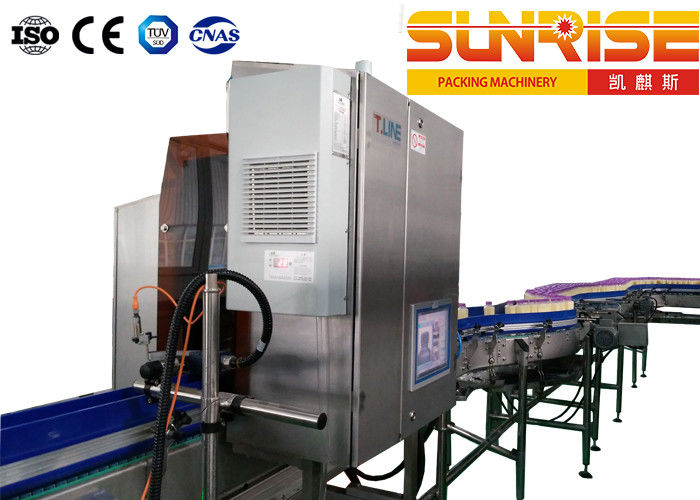

Label Inspection Machine Installation Position Icon​

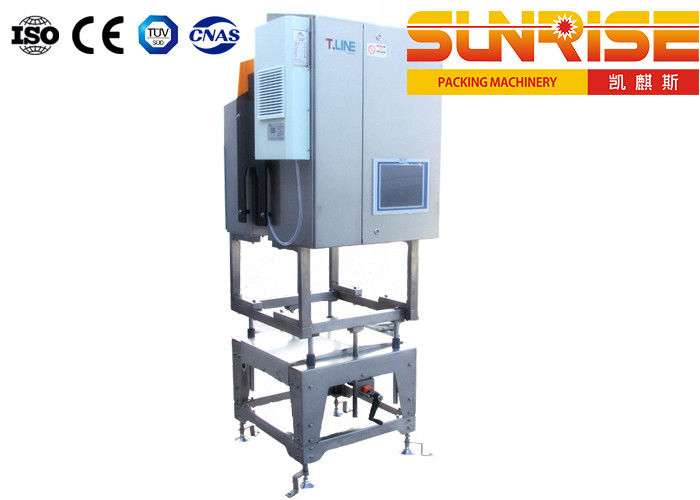

360 Degree Label Inspection Machine AC220V Single Phase 0

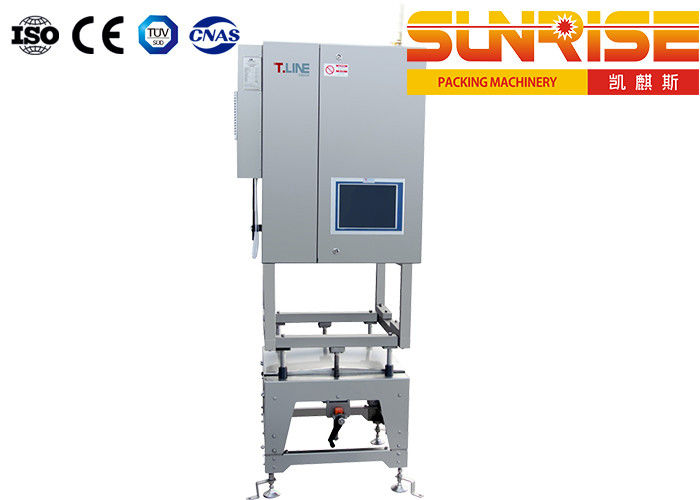

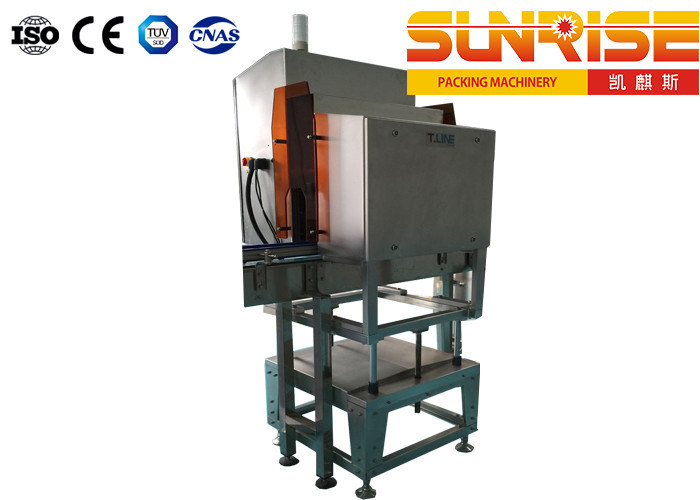

360 Degree Label Inspection Machine AC220V Single Phase 1360 Degree Label Inspection Machine AC220V Single Phase 2360 Degree Label Inspection Machine AC220V Single Phase 3



3. Technical Parameters And Features:



Dimensions:   900*800*2600mm Body material:   SUS304;
Machine power:   0.7KW; External power supply:   AC220V/single phase;
Power frequency:   50/60HZ; Maximum speed:   1500 ph/min;
External air source:   0.5Mpa; Gas consumption:   0.01L/time



4.Accessory Brands:



Image processor:   Nuvo;
Display:   NODKA, 15-inch touch screen;
CCD camera:   BAUMER, Germany;
Lens:   Japanese Computar;
Optoelectronics:  Leuze, Germany;
PLC:   Japan Omron;
Light source:   OPT;
Light source controller:   T-Line;
Industrial air conditioning:   LEIZIG, Australia;
Cylinder:   Japan SMC;
Solenoid valve:   American MAC;
Signal lights, circuit breakers:   Schneider;
