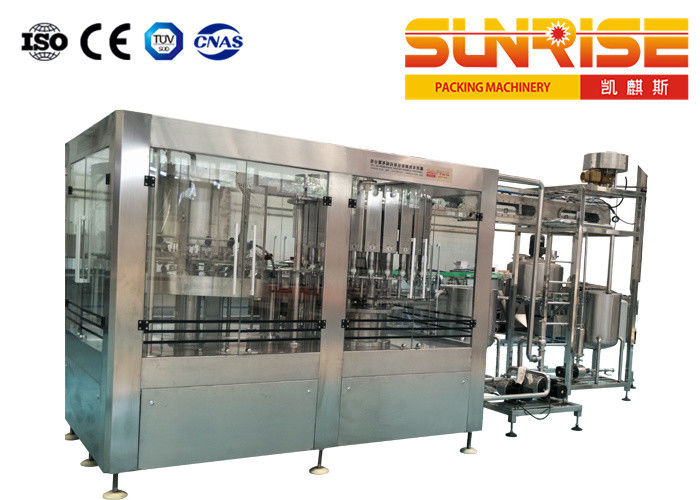

5.5kw Hot Filling Machine , 3 In 1 Beverage Filling Equipment Washing Capping

5.5kw Hot Filling Machine , 3 In 1 Beverage Filling Equipment Washing Capping

  • High Light

    5.5kw Hot Filling Machine

    ,

    3 In 1 Beverage Filling Equipment

    ,

    5.5kw Beverage Filling Equipment

  • Capacity
    8000-10000BPH
  • Power
    5.5kw
  • Weight
    6000kg
  • Washing Head
    24
  • Filling Head
    24
  • Capping Head
    8
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    KQSHF-08
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

5.5kw Hot Filling Machine , 3 In 1 Beverage Filling Equipment Washing Capping



PET Bottle Automatic Hot Filling 3 in 1 Juice Filling Machine​



Technical parameters:

Model KQSHF-08
Application Spring water / mineral water / pure water / non-gas wine drink and so on
Number of washing, filling and capping heads 24-24-8
Production capacity(500ml) 8000-10000BPH
Filling precision ±3mm(liquid level)
User Ambient Conditions

Temperature:10~40;

Humidity: No dew

Suitable bottle specification

Volume=500-2000ml

Diameter φ=50-106

Bottle height H=180 ~340mm

Machine material Food stage SS304 OR SS316
Air source pressure (Mpa) 0.5-0.6
Power(kw) 5.5kw
Control System SIEMENS PLC
Power Supply

Voltage:220V~4150V,3phase;

Frequency:50HZ/60HZ or your requirement

Overall dimensions (mm) 2800*2300*2500
Weight (kg) 6000
Certificates CE / SGS / ISO 9001/ CCC

SUNRISE KQSHF Series Washing Filling And Capping Machine:

Model

Number of washing, filling

and capping heads

Production capacity(500ml)
KQSHF-06 16-12-6 3000-4000BPH
KQSHF-06A 18-18-6 5000~6000BPH
KQSHF-08 24-24-8 10000BPH
KQSHF-10 32-32-10 14000BPH
KQSHF-12 40-40-12 18000BPH
KQSHF-12A 50-50-12 20000BPH
KQSHF-15 60-60-15 24000BPH
KQSHF-15A 72-72-18 28000BPH

5.5kw Hot Filling Machine , 3 In 1 Beverage Filling Equipment Washing Capping 0

Application products:



PET bottle Automatic hot filling 3 in 1 juice filling machine  Suitable for washing, filling and sealing of PET bottles. This machine is used for hot filling of various beverages such as fruit juice and tea beverage. Only a few parts need to be replaced, and it is suitable for pure water and mineral water filling. In mainland China, many companies use our juice filling machines.
