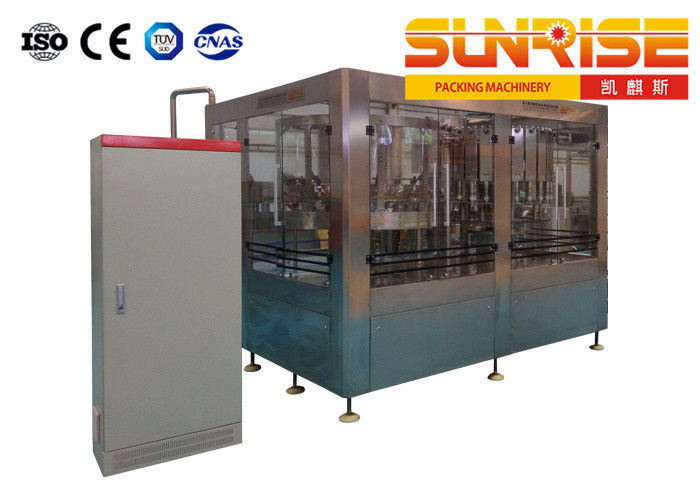

8000 PET Bottle Hot Liquid Filling Machine With Washing Sealing

8000 PET Bottle Hot Liquid Filling Machine With Washing Sealing

  • High Light

    8000 Bottle Hot Liquid Filling Machine

    ,

    PET Bottle Hot Liquid Filling Machine

    ,

    8000 Bottle liquid filler machine

  • Production Capacity(500ml)
    8000-10000BPH
  • Dimension(mm)
    2800*2300*2500
  • Weight (kg)
    6000
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    KQSHF-08
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

8000 PET Bottle Hot Liquid Filling Machine With Washing Sealing

8000 PET bottle hot filling machine per hour



Technical parameters:

Model KQSHF-08
Application Spring water / mineral water / pure water / non-gas wine drink and so on
Number of washing, filling and capping heads 24-24-8
Capacity(500ml) 8000-10000BPH
Filling precision ±3mm(liquid level)
User Ambient Conditions

Temperature:10~40;

Humidity: No dew

Suitable bottle specification

Volume=500-2000ml

Diameter φ=50-106

Bottle height H=180 ~340mm

Machine material Food stage SS304 OR SS316
Air source pressure (Mpa) 0.5-0.6
Power(kw) 5.5kw
Control System SIEMENS PLC
Power Supply

Voltage:220V~4150V,3phase;

Frequency:50HZ/60HZ or your requirement

Overall dimensions (mm) 2800*2300*2500
Weight (kg) 6000
Certificates CE / SGS / ISO 9001/ CCC

KQSHF series washing filling and capping machine:



Model

Number of washing, filling

and capping heads

Production capacity(500ml)
KQSHF-06 16-12-6 3000-4000BPH
KQSHF-06A 18-18-6 5000~6000BPH
KQSHF-08 24-24-8 10000BPH
KQSHF-10 32-32-10 14000BPH
KQSHF-12 40-40-12 18000BPH
KQSHF-12A 50-50-12 20000BPH
KQSHF-15 60-60-15 24000BPH
KQSHF-15A 72-72-18 28000BPH

8000 PET Bottle Hot Liquid Filling Machine With Washing Sealing 0

Application products:



8000 PET bottle hot filling machine per hour This product is suitable for PET bottle washing, filling and sealing. This machine is mainly used for hot filling of various energy drinks such as fruit juice and tea drinks. Only a small number of parts need to be replaced, and it can be applied to the filling of pure water and mineral water.
