Food beverage X-ray online Liquid level detector

Food beverage X-ray online Liquid level detector

  • High Light

    Liquid Level x ray inspection equipment


    TJYWXS15 X Ray Inspection Equipment

  • Dimensions
  • Speed
    400~900 Bottles/min
  • Power Supply
    AC220V /single Phase
  • Temperature
  • Altitude
    <3000 Meters
  • External Air Source Interface
    Outer Diameter φ10 Trachea
  • Applicable Products
    Food Beverage
  • Place of Origin
    Jiangsu, China
  • Brand Name
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 units per year

Food beverage X-ray online Liquid level detector

X-ray on-line liquid level detector


X-ray on-line liquid level detector function description:

Application range: online level detection of cans and beverage products such as two-piece cans/three-piece cans/PET bottles/glass bottles

Technical characteristics of liquid level filling X-ray inspection machine:

1. It can be tested immediately after the product is started without preheating.

2. Non contact inspection, fast speed and high precision.
3. The product can automatically adapt to different production line speed and realize dynamic detection.

4. The product is made of stainless steel shell and main frame with sealed design, which has anti fog, water drop and strong adaptability to the environment.
5. Free time will automatically intercept high-frequency radiation.
6. The product adopts hardware circuit and built-in operating system to ensure long-term stable operation.
7. Sound and light alarm at the same time, automatically take out the unqualified container.
8. The 11 inch touch screen display provides a simple and reliable man-machine interface to change the bottle type flexibly and conveniently.
Large screen display, LED backlight LCD display, clear and bright characters, intelligent dialogue operation

10. No isotope radioactive source, the product adopts soft light design, and the radiation protection is safe and reliable.

Food beverage on-line liquid level detector the main parameters:
    1. Linear speed of production with carrier: ≤ 1.8m/s
    2. Vessel diameter: 20mm-100m (different detectors for different container concentrations and diameters)
    3. Dynamic vessel resolution: ± 2mm (bubbles and sloshing may affect accuracy)
    4. Static liquid level detection accuracy: ≤ 0.5mm (water)
    5. Static 8-hour-l detection stability: ≤ 0.15mm (water)
    6. Removal rate of unqualified containers: ≥ 99% (detection speed: 900 cans / min)
    7. Temperature error: 0-40 ℃ The temperature error of detection value ≤ 0.25mm is 20 ℃

    8. Working requirement: minimum time width is 10ms (with or without tank)

    9. Large screen Chinese and English display, LED backlight LCD, clear and bright characters, man-machine dialogue mode operation.

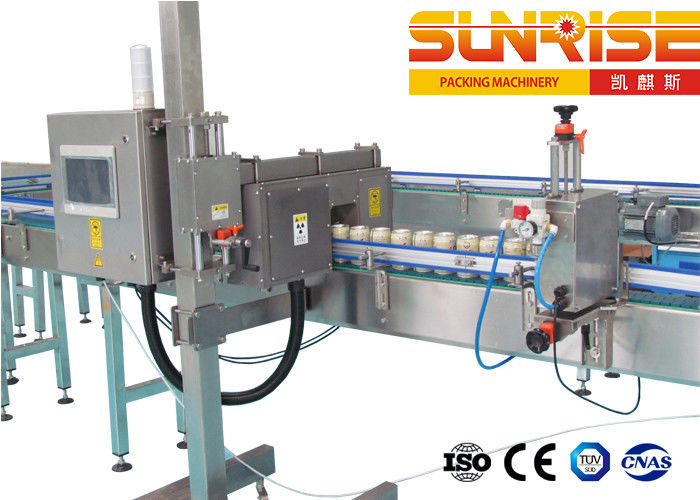

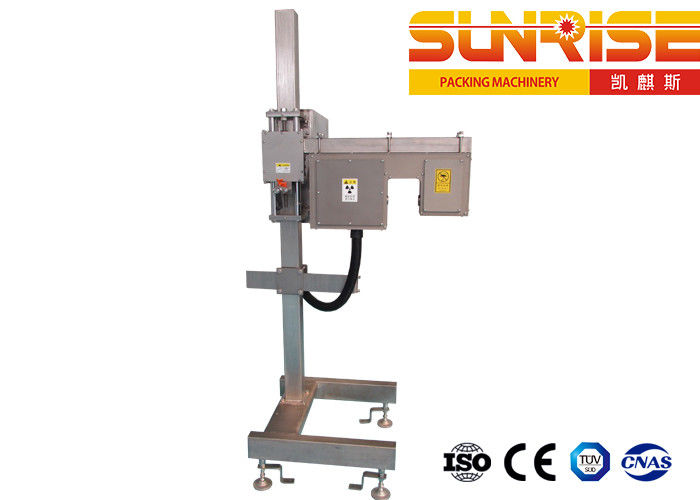

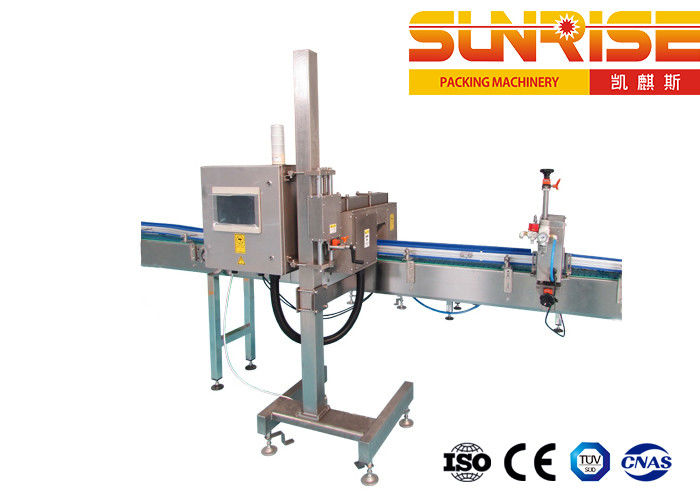

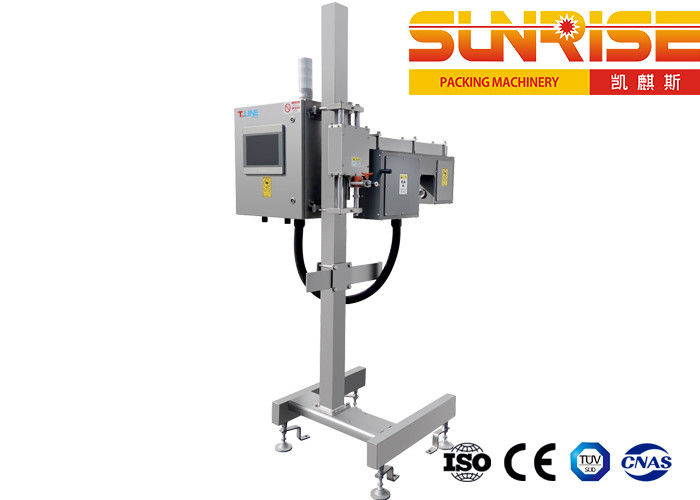

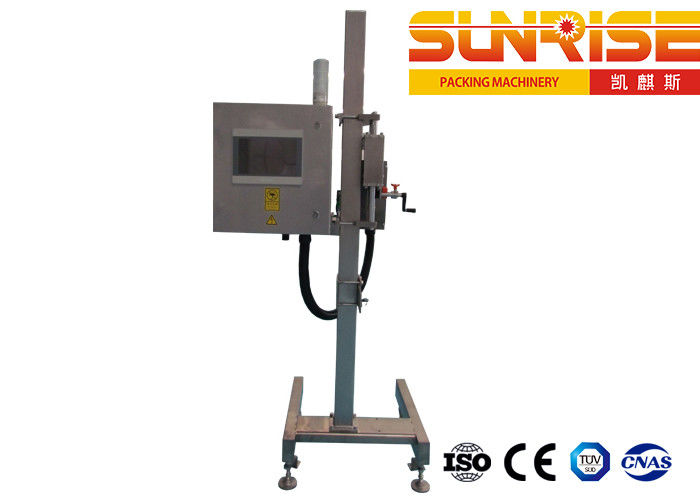

Food beverage X-ray online Liquid level detector 0Food beverage X-ray online Liquid level detector 1Food beverage X-ray online Liquid level detector 2


Food beverage X-ray liquid level detectortechnical parameter:

       Liquid level X-ray inspection machine (TJYWXS15) adopts non-contact on-line detection mode, applies nuclear technology, and uses the principle that the ray intensity changes with the material surface position after the interaction between low-energy photon source and the material to be measured, so as to control the detection of filling liquid material capacity. Because of its non-contact measurement method, it fundamentally solves the problem that the conventional weighing method can not measure the filling liquid material capacity on the production line. Therefore, it is widely used in the on-line detection of food and beverage.


Food beverage on-line liquid level detector device parameters:

         Control platform: TJYWXS15 integrates the latest digital signal processing technology, and the color touch screen operation simplifies the human-computer communication. The display can display all parameters setting and adjustment of products, and can store the parameters of 10 different products at the same time. Other functions of the system include independent programmable striking output, which is used for product defect striking. The independent programmable module can make the following settings: hitting container, retaining container, encoder, hitting indicator, alarm and status output of percussion device.


    The detection system is mainly composed of human-machine interface, liquid level detection unit and eliminator, in which the liquid level detection unit includes high-voltage power supply, ray transmitting tube and ray receiving tube, which is the core component of the equipment; the human-computer interface includes touch screen, tower lamp and operation interface; the knockout device is the executive mechanism of the system, which is used to separate or remove unqualified cans.
