SUNRISE Ultra Clean Water Bottling Line 24000 BPH Microbial Control

SUNRISE Ultra Clean Water Bottling Line 24000 BPH Microbial Control

  • High Light

    SUNRISE Ultra Clean Water Bottling Line

    ,

    24000 Bph Water Bottling Line

    ,

    24000 Bph Ultra Clean Filling Machine

  • Production Capacity
    24000BPH
  • Bottle Size
    H=180-340mm, Φ50-106mm
  • Power Supply
    11kw
  • Dimensions
    10500*4000*3100mm
  • Overall Weight
    13000kg
  • Place of Origin
    Jiangsu, China
  • Brand Name
    SUNRISE
  • Certification
    EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
  • Model Number
    KQSMF15B
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard shipping wooden box or stretch film packaging
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    6 units per year

SUNRISE Ultra Clean Water Bottling Line 24000 BPH Microbial Control

  • SUNRISE Ultra Clean Water Bottling Line 24000 BPH Microbial Control
  • SUNRISE Ultra Clean Water Bottling Line 24000 BPH Microbial Control

Ultra Clean Filling Line for 24000BPH


1. Ultra-clean filling technology


        Ultra-clean filling technology is an ultra-clean filling technology introduced on the basis of aseptic filling technology. It uses the microbial control technology of aseptic filling and fills in a 100-grade clean environment with strict disinfection technology to ensure that the products are not polluted by external factors during the filling process. Compared with aseptic filling, it is more cost-effective.


2. The ultra-clean filling process needs to meet three conditions


1) The filling material should meet the safety requirements of the shelf life;

2) The contact surface between the packaging material and the filing material shall be sterilized;

3) The environment of the filling and sealing area shall be sterilized and maintained in a clean environment.


3. Applicable conditions of SUNRISE ultra-clean filling


1) Applicable products: fruit juice, tea drinks, functional drinks, dairy drinks, water, etc.

2) Applicable container: PET bottles of various sizes and shapes

3) Filling temperature: hot filling (85-92℃), medium temperature (68-72℃), low temperature filling (below 35℃)


4. Institutional characteristics



1) Washing station

        The bottle washing machine has reasonable structure, convenient adjustment, sufficient lubrication, and all materials used meet the food hygiene requirements. The hose connector of the water diversion tray adopts stainless steel quick-plug connector. The center of the water distribution tray is made of wear-resistant and waterproof material POM, and the seal is made of silica gel, which is wear-resistant and corrosion-resistant, and adopts an internal and external water pressure self-balanced sealing rotating mechanism. The bottle washing machine can realize high-pressure washing of the inside of the bottle, the outer wall of the bottle and the mouth of the bottle. The bottle washing area has a lower water receiving tray and an upper water baffle. The rinsing water inlet is equipped with a pressure adjusting device, which can adjust the rinsing pressure according to the requirements of the empty bottle and control the water flow. Effectively guarantee the effect of rinsing and save the consumption of rinsing water. A bottle-rinsing device is installed at the bottle-rinsing connection to effectively disinfect and clean the bottle neck.

2) Filling station

        The filling form is pressure filling. The filling pressure is provided by the sanitary pump, and a stainless steel pressure backup valve is provided before the liquid is fed into the center of the filling machine to control the filling pressure. The filling machine adopts upper and lower dispensing cylinders. During the filling process, the air in the bottle returns to the lower dispensing cylinder without contact with the outside world, which is more advantageous than other forms of filling to ensure the sterility of the product.


3) Sealing station

       The sealing mechanism adopts a tower transmission mechanism. The sealing head adopts German technology, and the tightening mechanism adopts an adjustable magnetic clutch configuration. The tightening force can be continuously adjusted between 0.6-2.2N.m according to the parameter requirements of the bottle cap. When the tightening force is higher than the set value, the screw head automatically runs idly, avoiding the cap abrasion by the sealing head, and the sealing pass rate is greater than 99.9.

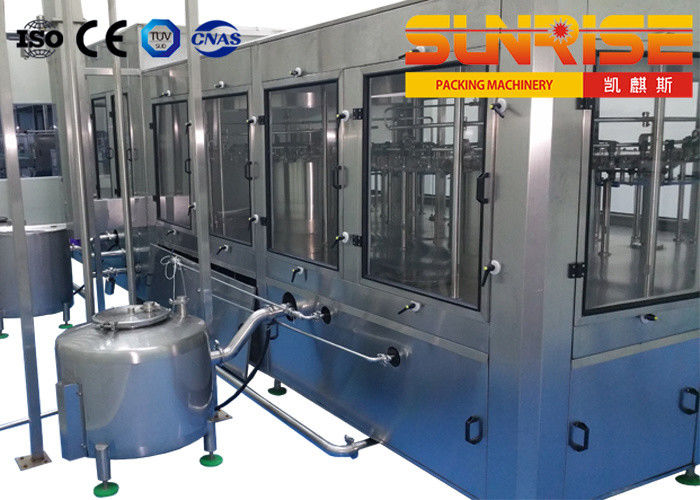

SUNRISE Ultra Clean Water Bottling Line 24000 BPH Microbial Control 0

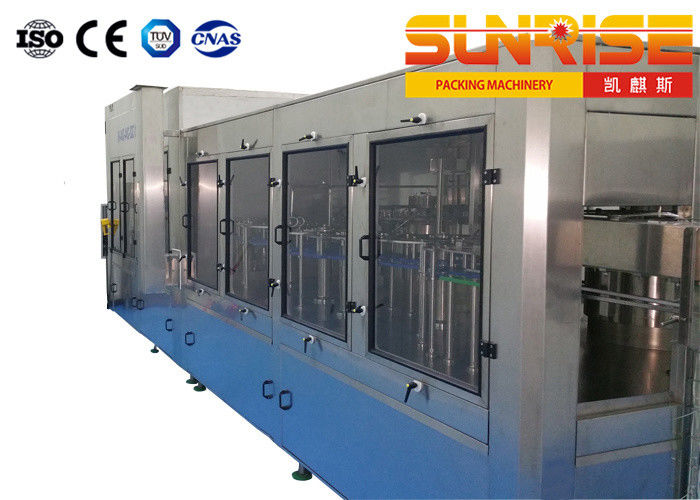

SUNRISE Ultra Clean Water Bottling Line 24000 BPH Microbial Control 1

FAQ:


Q : Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.


Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.


Q: How to find sunrise machine?
A:

● Search Alibaba, Google, YouTube and find suppliers and manufacture and not traders
● Visit exhibition in different countries
● Send SUNRISE Machine an request and tell your basic inquiry
● SUNRISE Machine sales manager will reply you in short time and add instant chatting tool


Q: You are welcome to our factory at any time.
A:

● If we can fulfill your request and you interested in our products, you may pay a visit to SUNRISE factory site
● The meaning of visiting supplier, because seeing is believing, SUNRISE with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.


Q: How to guarantee your funds to be safe and delivery to be on time?
A:

● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.


Q: See SUNRISE machine how to ensure the quality!
A:

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory


Q:The after-sale service of SUNRISE machine!
A:

● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form an after-sales team, online and off line, to follow the customers' project.
